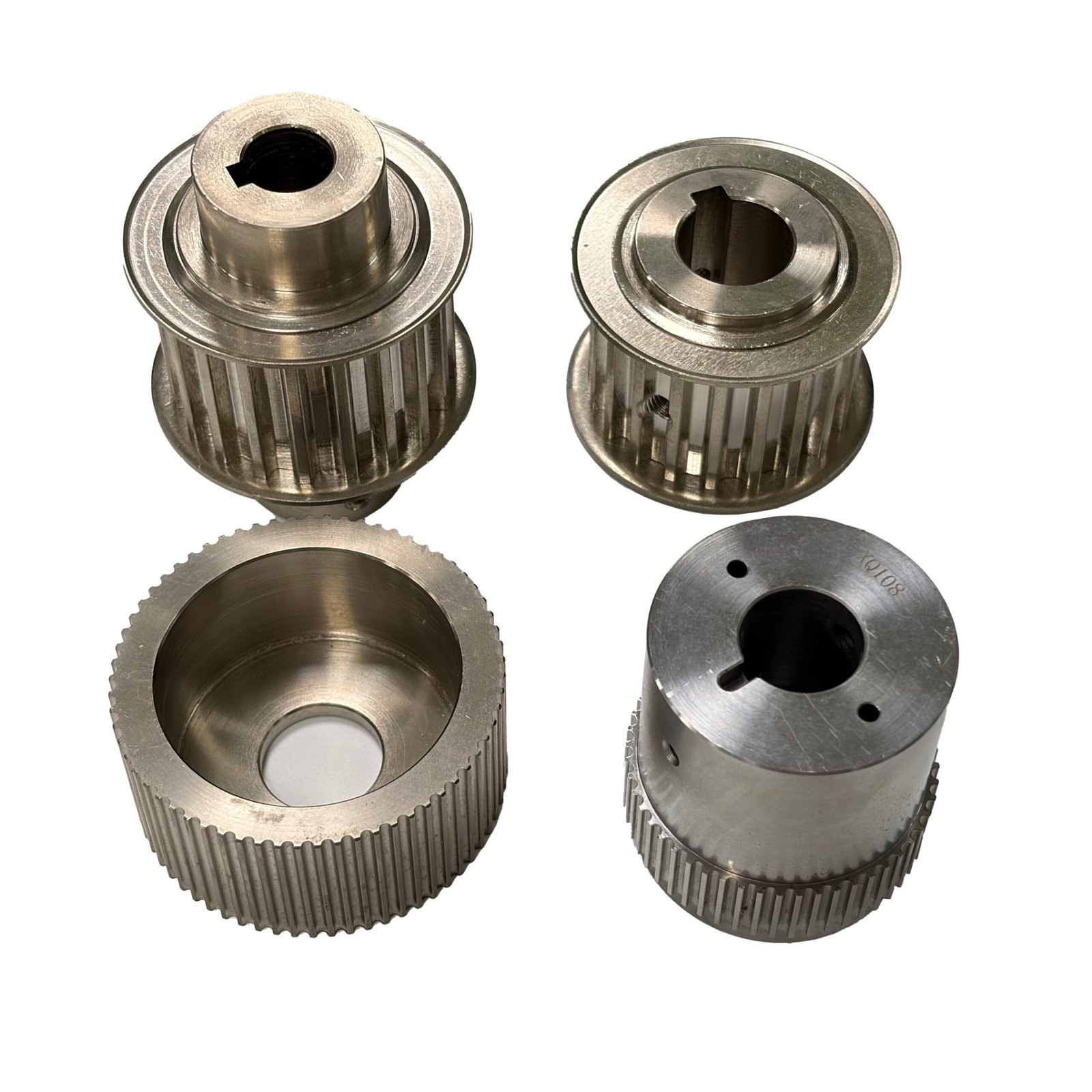

Stainless Steel timing belt
| Parameter | Technical Specification |
|---|---|
| Product Type | Precision Industrial Stainless Steel Timing Pulley |
| Material Grade | 304 Stainless Steel, 316 Stainless Steel, 316L Stainless Steel |
| Tooth Profile Compatibility | HTD (3M, 5M, 8M, 14M), STD (S2M, S3M, S5M, S8M), T (T2.5, T5, T10), AT (AT5, AT10), Imperial (MXL, XL, L, H) |
| Bore Configuration | Pilot Bore, Finished Bore with Keyway & Setscrews, Clamping Hub, Taper-Lock Bushing |
| Surface Finish | Natural Machined Finish, Passivated, Electropolished, Bead Blasted |
| Precision Class | ISO 5294 / DIN 7721 Standard Precision (Custom CNC Tolerances up to H7) |
| Flange Specification | Stainless Steel Flanges (Single or Dual Side, Welded or Screwed) |
| Temperature Range | -200°C to +400°C (-328°F to +752°F) |
Description
Product Description
Stainless Steel Timing Pulleys are high-durability, corrosion-resistant power transmission components designed for synchronized driving under harsh environmental conditions. CNC-machined from premium 304 or 316 stainless steel, these pulleys feature high load capacity, excellent wear resistance, and precise tooth geometry to ensure minimal tooth friction and smooth mesh with timing belts.
Applications
Food & Beverage Processing: Washdown conveyors, bottling and canning machinery, and meat/seafood processing lines.
Pharmaceutical & Medical Equipment: Sterile packaging machinery, automated pill filling systems, and cleanroom sorting equipment.
Chemical & Marine Environments: Exposure to corrosive chemicals, saltwater atmosphere, outdoor machinery, and high-humidity processing units.
Key Features
Superior Corrosion & Rust Resistance: 304/316 grade stainless steel prevents rust, pitting, and chemical attack during strict washdown cycles.
High Thermal Stability: Maintains precise dimensional integrity and mechanical strength across continuous freezing or high-heat operations.
Hygienic & Easy to Clean: Smooth surface options allow easy sanitization with aggressive chemical washdown solutions without material breakdown.
High Load & Wear Endurance: Extremely resistant to tooth deformation and abrasive wear under high torque and continuous dynamic loads.
