Premium Custom Timing Belts & Timing Pulleys for Industrial Transmission Applications
Browse our extensive lineup of high-precision timing belts and timing pulleys made from premium rubber, PU and aluminum alloy materials. We supply standard and bespoke transmission parts covering AT5 series belts, BANDO synchronous belts, machined aluminum timing pulleys and more. Our products fit automation equipment, packaging machinery, CNC devices and various industrial drive systems, meeting RoHS and SGS international quality benchmarks. Flexible customization on dimensions, tooth profiles and surface treatments helps your projects satisfy diverse industrial operating demands worldwide.
Showing all 6 results

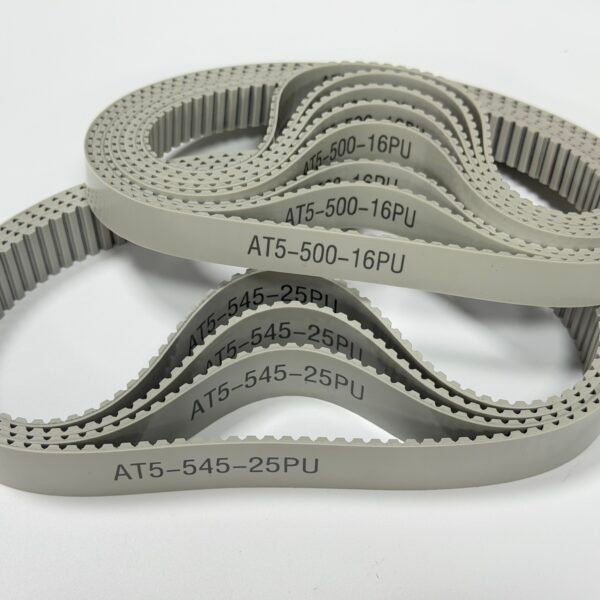

| Parameter | Technical Specification |
|---|---|
| Belt Pitch | 5.0 mm |
| Tooth Height | 1.20 mm |
| Overall Thickness | 2.70 mm |
| Tooth Profile | 50° Trapezoidal Flat-top (Low Backlash Design) |
| Base Material | Thermoplastic Polyurethane (TPU, 92°-95° Shore A) |
| Reinforcement | High-Tensile Galvanized Steel Cord / Kevlar (Aramid) Cord |
| Standard Widths | 10 mm, 15 mm, 25 mm, 32 mm, 50 mm (Custom Widths Available) |
| Supply Form | Open-End Roll / Truly Seamless / Spliced (Jointed) |
| Temperature Range | -20℃ to +80℃ (-4℉ to +176℉) |

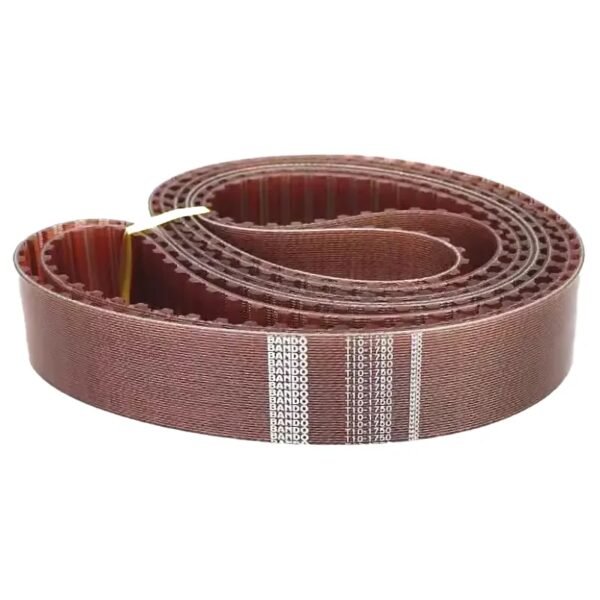

| Parameter | Technical Specification |
|---|---|
| Brand | BANDO (Japan) |
| Series / Tooth Profile | STS (S2M, S3M, S5M, S8M, S14M), HP-STS, CEPTOR-X, MXL, XL, L, H, XH |
| Base Material | High-Grade Synthetic Rubber (HNBR / CR) |
| Tensile Member | Fiberglass Cord / High-Modulus Aramid Cord |
| Facing Fabric | Low-Friction Nylon Tooth Canvas |
| Standard Pitch | 2.0mm, 3.0mm, 5.0mm, 8.0mm, 14.0mm (Metric) / MXL, XL, L, H (Inch) |
| Supply Form | Endless Ring Belts / Open-End Cut Lengths |
| Temperature Range | -30°C to +90°C (-22°F to +194°F) |

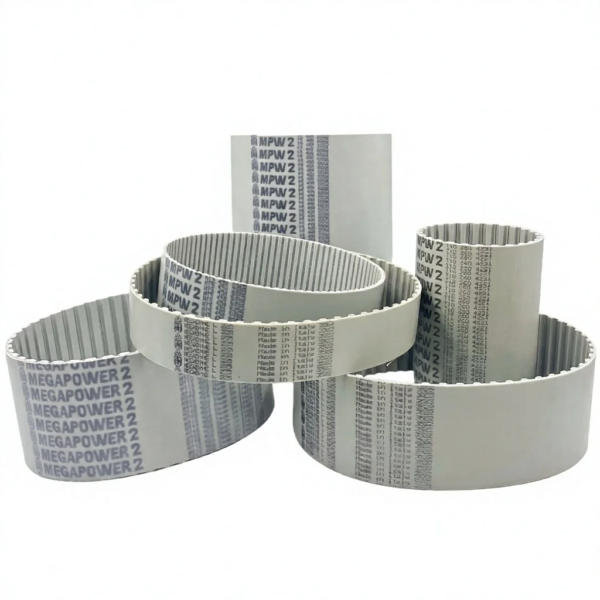

| Parameter | Technical Specification |
|---|---|
| Brand | MEGADYNE (Italy) |
| Series / Tooth Profile | MEGAPOWER, MEGAFLEX, ISORAN, PLATINUM, GOLD, RPP3, RPP5, RPP8, RPP14, T5, T10, AT5, AT10 |
| Base Material | Thermoplastic Polyurethane (TPU) / High-Grade Synthetic Rubber (HNBR / CR) |
| Tensile Member | High-Tensile Steel Cord / Kevlar Cord / Fiberglass Cord |
| Facing Fabric | Nylon Fabric (Tooth Side) / NBR (Nylon Fabric Backing) / Special Covers |
| Standard Pitch | 3.0mm, 5.0mm, 8.0mm, 14.0mm (RPP/STD) / 2.5mm, 5.0mm, 10.0mm, 20.0mm (T/TAT Series) |
| Supply Form | Truly Seamless Endless / Open-End Cut Lengths / Spliced Jointed Belts |
| Temperature Range | -25°C to +80°C (Polyurethane) / -30°C to +115°C (Rubber, ISORAN/PLATINUM) |

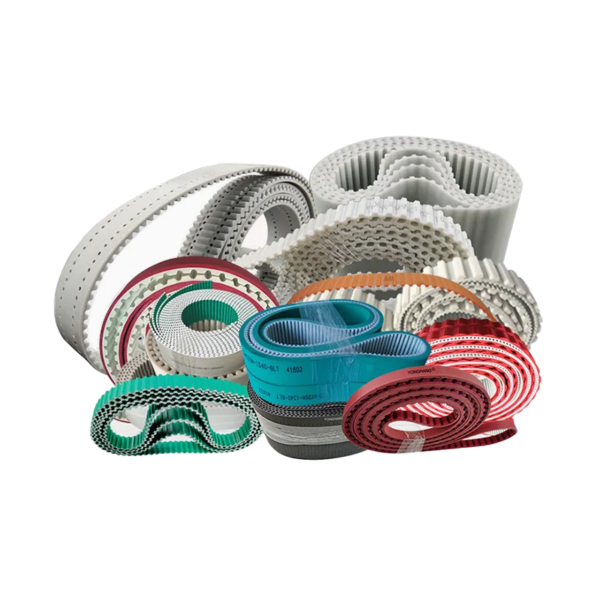

| Parameter | Technical Specification |
|---|---|
| Product Type | Open-End Polyurethane (PU) Timing Belt |
| Tooth Profile Series | T5, T10, T20, AT5, AT10, AT20, HTD 5M, 8M, 14M, STD 5M, 8M, XL, L, H, XH |
| Base Material | High-Grade Thermoplastic Polyurethane (TPU, 92°-95° Shore A) |
| Tensile Cord Member | High-Tensile Steel Cord / Stainless Steel Cord / Kevlar (Aramid) Cord |
| Standard Roll Length | 50 meters, 100 meters per roll (Custom lengths available) |
| Standard Widths | 10mm, 15mm, 20mm, 25mm, 30mm, 50mm, 85mm, 100mm (Custom slit widths available) |
| Optional Fabric | PAZ (Nylon Fabric on Tooth Side) / PAR (Nylon Fabric on Back Side) / PAZ+PAR |
| Temperature Range | -20°C to +80°C (-4°F to +176°F) |

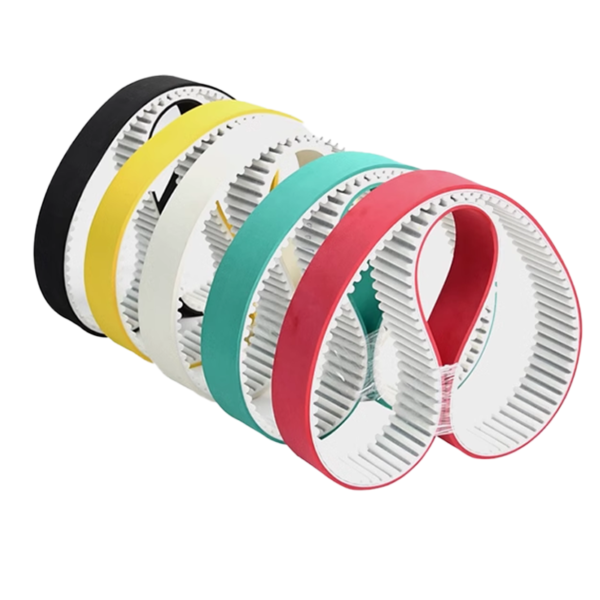

| Parameter | Technical Specification |
|---|---|
| Product Type | Polyurethane (PU) Coated Timing Belt |
| Base Belt Material | Thermoplastic Polyurethane (TPU) / High-Grade Rubber |
| Coating Materials | Seamless PU, Red PU, Linex, Teneax, Sponge, Silicone, PVC |
| Coating Thickness | 1.0mm to 10.0mm (Custom thickness available) |
| Coating Hardness | 30° Shore A (Soft Sponge) to 95° Shore A (Extra Hard PU) |
| Tensile Cord Member | Galvanized Steel Cord / Stainless Steel / Kevlar (Aramid) Cord |
| Base Belt Profiles | T5, T10, T20, AT5, AT10, AT20, HTD 5M, 8M, 14M, STD 5M, 8M |
| Secondary Processing | Hole Perforation, Transverse Longitudinal Grooving, CNC Cleats Welding |
| Temperature Range | -20°C to +80°C (-4°F to +176°F) |
| Parameter | Technical Specification |
|---|---|
| Product Type | Polyurethane (PU) Industrial Timing Belt |
| Tooth Profile Series | T2.5, T5, T10, T20, AT3, AT5, AT10, AT20, HTD 3M, 5M, 8M, 14M, STD 5M, 8M, XL, L, H, XH |
| Base Material | High-Grade Thermoplastic Polyurethane (TPU, 92°-95° Shore A) |
| Tensile Cord Member | High-Tensile Galvanized Steel Cord / Stainless Steel Cord / Kevlar (Aramid) Cord |
| Supply Form | Open-End Roll / Truly Seamless Endless (Flex) / Spliced Jointed Belt |
| Standard Widths | 6mm to 150mm (Custom slitting available) |
| Optional Fabric | PAZ (Nylon Fabric on Tooth Side) / PAR (Nylon Fabric on Back Side) / PAZ+PAR |
| Secondary Processing | Cleat/Profile Welding, Backing Covers (PU/Linatex/Silicone), Perforation, Grooving |
| Temperature Range | -20°C to +80°C (-4°F to +176°F) |
