AT5 timng belt
| Parameter | Technical Specification |
|---|---|
| Belt Pitch | 5.0 mm |
| Tooth Height | 1.20 mm |
| Overall Thickness | 2.70 mm |
| Tooth Profile | 50° Trapezoidal Flat-top (Low Backlash Design) |
| Base Material | Thermoplastic Polyurethane (TPU, 92°-95° Shore A) |
| Reinforcement | High-Tensile Galvanized Steel Cord / Kevlar (Aramid) Cord |
| Standard Widths | 10 mm, 15 mm, 25 mm, 32 mm, 50 mm (Custom Widths Available) |
| Supply Form | Open-End Roll / Truly Seamless / Spliced (Jointed) |
| Temperature Range | -20℃ to +80℃ (-4℉ to +176℉) |
Description
Product Description

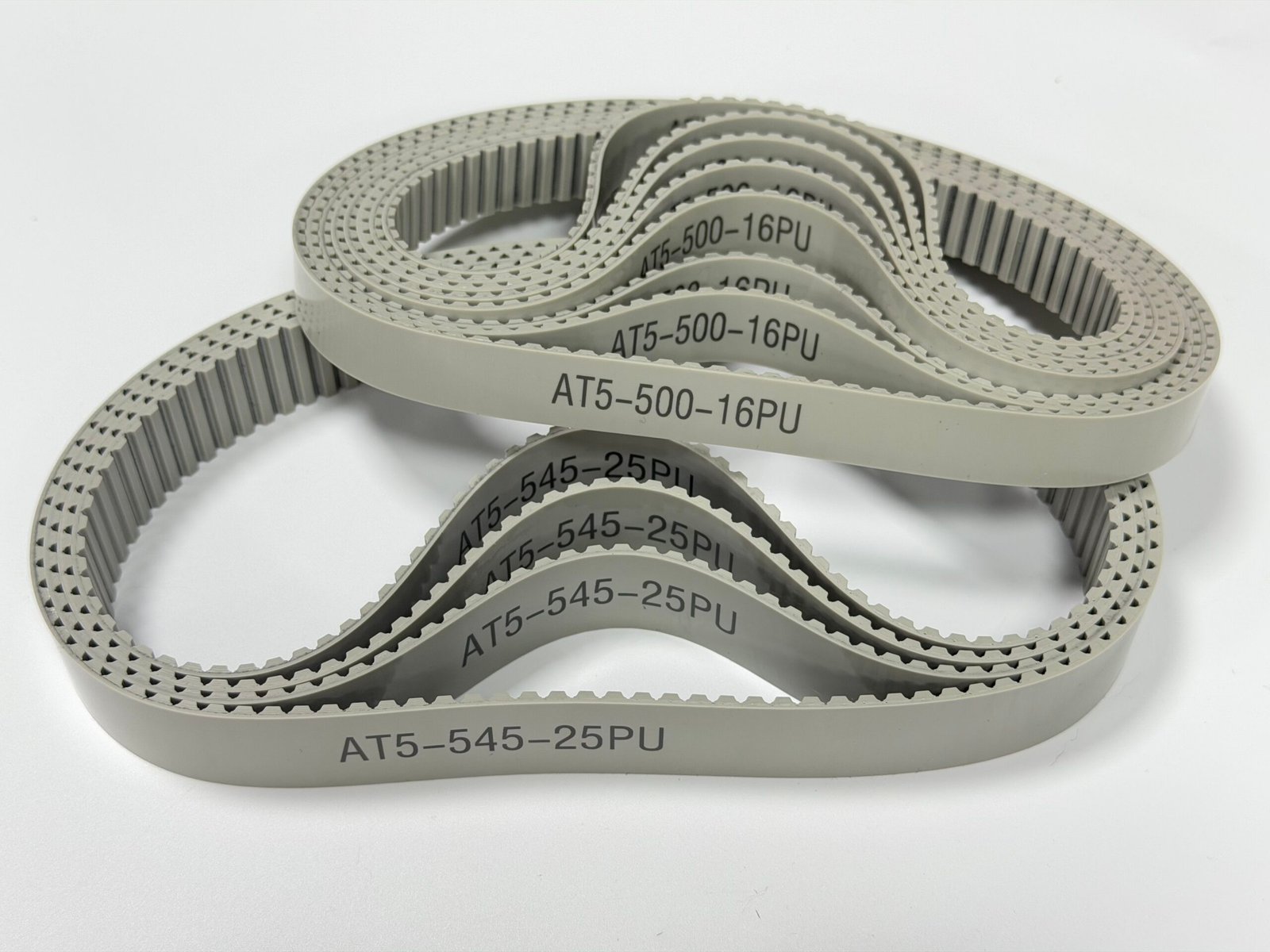

The PU AT5 timing belt features a high-rigidity, low-backlash trapezoidal flat-top tooth profile. Compared to standard T5 belts, the AT5 profile offers an increased tooth root cross-section and tooth thickness. Combined with embedded high-modulus steel tension cords, it maintains micron-level repeatability under high-load, frequent start-stop, and bidirectional reversal conditions while providing clean, oil-resistant, and wear-resistant operation.
Applications
Industrial Robotics & Automation:
SCARA robots, multi-axis servo modules, and high-precision X-Y positioning stages.
CNC & Precision Machinery:
3D printers, laser cutting machines, and CNC routers.
Packaging & Medical Equipment:
Pharmaceutical packaging lines, automated labeling machines, and semiconductor handling equipment.
Key Features
Low Backlash: Flat-top tooth geometry minimizes mesh clearance, eliminating reversal delay during direction changes.
Related Products
Related products
-
PU TIMING BELTPU COATED BELT

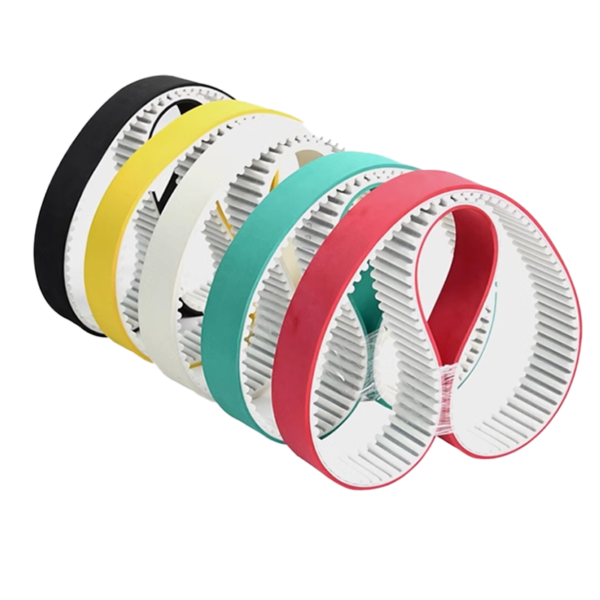

Parameter Technical Specification Product Type Polyurethane (PU) Coated Timing Belt Base Belt Material Thermoplastic Polyurethane (TPU) / High-Grade Rubber Coating Materials Seamless PU, Red PU, Linex, Teneax, Sponge, Silicone, PVC Coating Thickness 1.0mm to 10.0mm (Custom thickness available) Coating Hardness 30° Shore A (Soft Sponge) to 95° Shore A (Extra Hard PU) Tensile Cord Member Galvanized Steel Cord / Stainless Steel / Kevlar (Aramid) Cord Base Belt Profiles T5, T10, T20, AT5, AT10, AT20, HTD 5M, 8M, 14M, STD 5M, 8M Secondary Processing Hole Perforation, Transverse Longitudinal Grooving, CNC Cleats Welding Temperature Range -20°C to +80°C (-4°F to +176°F) -
PU TIMING BELTopen pu timing belt
Parameter Technical Specification Product Type Open-End Polyurethane (PU) Timing Belt Tooth Profile Series T5, T10, T20, AT5, AT10, AT20, HTD 5M, 8M, 14M, STD 5M, 8M, XL, L, H, XH Base Material High-Grade Thermoplastic Polyurethane (TPU, 92°-95° Shore A) Tensile Cord Member High-Tensile Steel Cord / Stainless Steel Cord / Kevlar (Aramid) Cord Standard Roll Length 50 meters, 100 meters per roll (Custom lengths available) Standard Widths 10mm, 15mm, 20mm, 25mm, 30mm, 50mm, 85mm, 100mm (Custom slit widths available) Optional Fabric PAZ (Nylon Fabric on Tooth Side) / PAR (Nylon Fabric on Back Side) / PAZ+PAR Temperature Range -20°C to +80°C (-4°F to +176°F) -
PU TIMING BELTBANDO Timing Belt
Parameter Technical Specification Brand BANDO (Japan) Series / Tooth Profile STS (S2M, S3M, S5M, S8M, S14M), HP-STS, CEPTOR-X, MXL, XL, L, H, XH Base Material High-Grade Synthetic Rubber (HNBR / CR) Tensile Member Fiberglass Cord / High-Modulus Aramid Cord Facing Fabric Low-Friction Nylon Tooth Canvas Standard Pitch 2.0mm, 3.0mm, 5.0mm, 8.0mm, 14.0mm (Metric) / MXL, XL, L, H (Inch) Supply Form Endless Ring Belts / Open-End Cut Lengths Temperature Range -30°C to +90°C (-22°F to +194°F)
