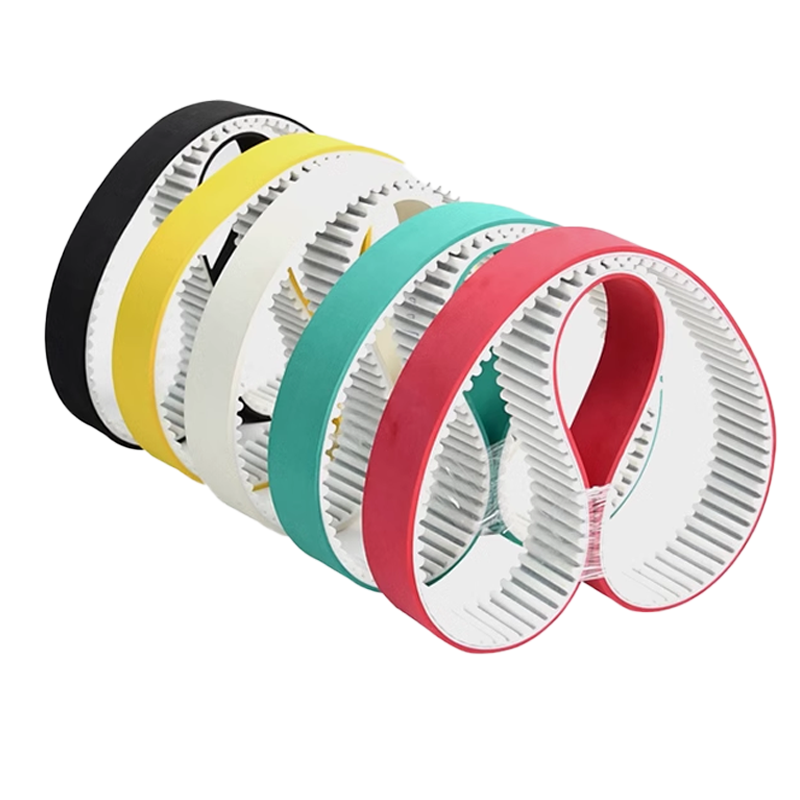

PU COATED BELT
| Parameter | Technical Specification |
|---|---|
| Product Type | Polyurethane (PU) Coated Timing Belt |
| Base Belt Material | Thermoplastic Polyurethane (TPU) / High-Grade Rubber |
| Coating Materials | Seamless PU, Red PU, Linex, Teneax, Sponge, Silicone, PVC |
| Coating Thickness | 1.0mm to 10.0mm (Custom thickness available) |
| Coating Hardness | 30° Shore A (Soft Sponge) to 95° Shore A (Extra Hard PU) |
| Tensile Cord Member | Galvanized Steel Cord / Stainless Steel / Kevlar (Aramid) Cord |
| Base Belt Profiles | T5, T10, T20, AT5, AT10, AT20, HTD 5M, 8M, 14M, STD 5M, 8M |
| Secondary Processing | Hole Perforation, Transverse Longitudinal Grooving, CNC Cleats Welding |
| Temperature Range | -20°C to +80°C (-4°F to +176°F) |
Description
Product Description
PU Coated Timing Belts are specialized power transmission and conveying components featuring an additional polyurethane or specialized elastomeric layer thermally fused or vulcanized onto the belt backing. Designed specifically for high-friction material handling, non-marking conveyance, and delicate product positioning, these belts combine the non-stretch structural stability of a timing belt core with a high-durability, wear-resistant surface layer.
Applications
Packaging & Printing Industry: Folder gluers, cartoning machinery, paper feeding, and film pulling systems.
Glass & Ceramic Handling: Non-scratching glass sheet transfer, ceramic tile production lines, and high-wear material conveying.
Automation & Cable Haul-Off: Cable puller machinery, pipe extruders, and pick-and-place indexing lines requiring high grip.
Key Features
High Friction & Non-Marking: Specialized PU coatings provide high friction coefficients without scuffing or damaging delicate surfaces.
Exceptional Wear & Cut Resistance: Premium polyurethane layer protects against sharp edges, heavy abrasion, and impact loads.
Delamination-Proof Bond: High-strength thermal fusion ensures the PU coating fuses seamlessly with the base timing belt, preventing peeling during small-radius flexing.
Custom Surface Patterns: Available with smooth, rough, ground, grooved, or perforated surfaces to optimize vacuum suction or grip performance.
Related Products
Related products
-
PU TIMING BELTPU timing belt
Parameter Technical Specification Product Type Polyurethane (PU) Industrial Timing Belt Tooth Profile Series T2.5, T5, T10, T20, AT3, AT5, AT10, AT20, HTD 3M, 5M, 8M, 14M, STD 5M, 8M, XL, L, H, XH Base Material High-Grade Thermoplastic Polyurethane (TPU, 92°-95° Shore A) Tensile Cord Member High-Tensile Galvanized Steel Cord / Stainless Steel Cord / Kevlar (Aramid) Cord Supply Form Open-End Roll / Truly Seamless Endless (Flex) / Spliced Jointed Belt Standard Widths 6mm to 150mm (Custom slitting available) Optional Fabric PAZ (Nylon Fabric on Tooth Side) / PAR (Nylon Fabric on Back Side) / PAZ+PAR Secondary Processing Cleat/Profile Welding, Backing Covers (PU/Linatex/Silicone), Perforation, Grooving Temperature Range -20°C to +80°C (-4°F to +176°F) -

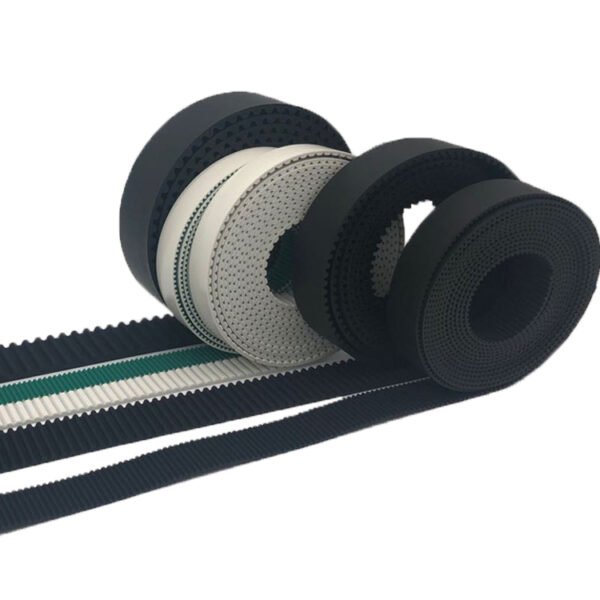

PU TIMING BELTopen pu timing belt
