Premium Custom Timing Belts & Timing Pulleys for Industrial Transmission Applications

Browse our extensive lineup of high-precision timing belts and timing pulleys made from premium rubber, PU and aluminum alloy materials. We supply standard and bespoke transmission parts covering AT5 series belts, BANDO synchronous belts, machined aluminum timing pulleys and more. Our products fit automation equipment, packaging machinery, CNC devices and various industrial drive systems, meeting RoHS and SGS international quality benchmarks. Flexible customization on dimensions, tooth profiles and surface treatments helps your projects satisfy diverse industrial operating demands worldwide.

Showing 1–12 of 29 results

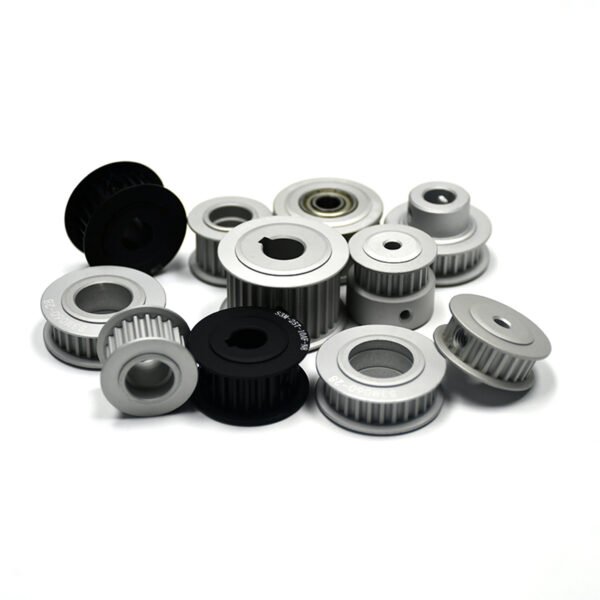

  • Aluminum Alloy TIMING BELT
    TIMING PULLEY

    Aluminum Alloy TIMING BELT
    Parameter Technical Specification
    Product Type Precision Industrial Timing Pulley
    Material Grade High-Grade Aluminum Alloy (6061-T6, 7075-T6, AL2024)
    Tooth Profile Compatibility HTD (3M, 5M, 8M, 14M), STD (S2M, S3M, S5M, S8M), T (T2.5, T5, T10), AT (AT5, AT10), Imperial (MXL, XL, L, H)
    Bore Configuration Pilot Bore, Stock Bore, Finished Bore with Keyway & Setscrews, Taper-Lock Bushing Bore
    Surface Treatment Anodized (Clear / Black / Hard Anodized), Electroless Nickel Plating, Passivated
    Precision Class ISO 5294 / DIN 7721 Standard Precision (Custom CNC Tolerances up to H7)
    Flange Specification Pressed Zinc-Plated Steel / Aluminum Flanges (Single or Dual Side)
    Temperature Range -40°C to +200°C (-40°F to +392°F)

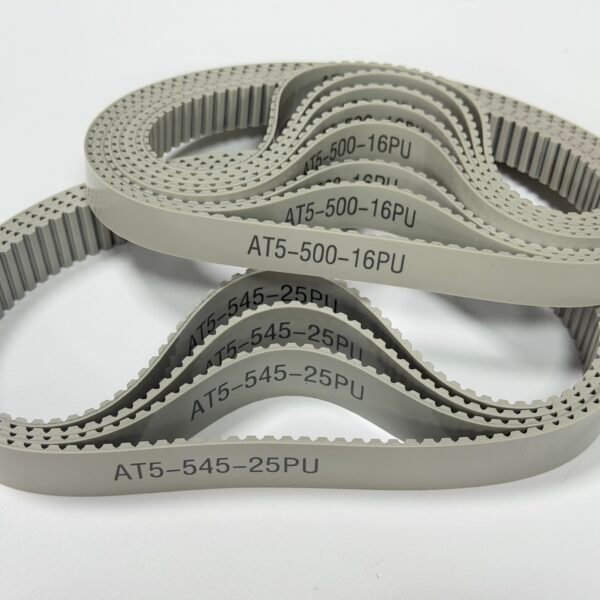

  • AT5 timng belt
    PU TIMING BELT

    AT5 timng belt
    Parameter Technical Specification
    Belt Pitch 5.0 mm
    Tooth Height 1.20 mm
    Overall Thickness 2.70 mm
    Tooth Profile 50° Trapezoidal Flat-top (Low Backlash Design)
    Base Material Thermoplastic Polyurethane (TPU, 92°-95° Shore A)
    Reinforcement High-Tensile Galvanized Steel Cord / Kevlar (Aramid) Cord
    Standard Widths 10 mm, 15 mm, 25 mm, 32 mm, 50 mm (Custom Widths Available)
    Supply Form Open-End Roll / Truly Seamless / Spliced (Jointed)
    Temperature Range -20℃ to +80℃ (-4℉ to +176℉)

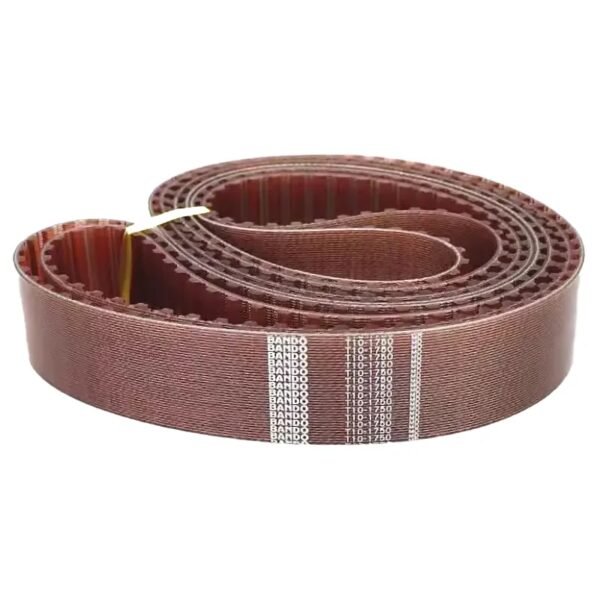

  • BANDO Timing Belt
    PU TIMING BELT

    BANDO Timing Belt
    Parameter Technical Specification
    Brand BANDO (Japan)
    Series / Tooth Profile STS (S2M, S3M, S5M, S8M, S14M), HP-STS, CEPTOR-X, MXL, XL, L, H, XH
    Base Material High-Grade Synthetic Rubber (HNBR / CR)
    Tensile Member Fiberglass Cord / High-Modulus Aramid Cord
    Facing Fabric Low-Friction Nylon Tooth Canvas
    Standard Pitch 2.0mm, 3.0mm, 5.0mm, 8.0mm, 14.0mm (Metric) / MXL, XL, L, H (Inch)
    Supply Form Endless Ring Belts / Open-End Cut Lengths
    Temperature Range -30°C to +90°C (-22°F to +194°F)

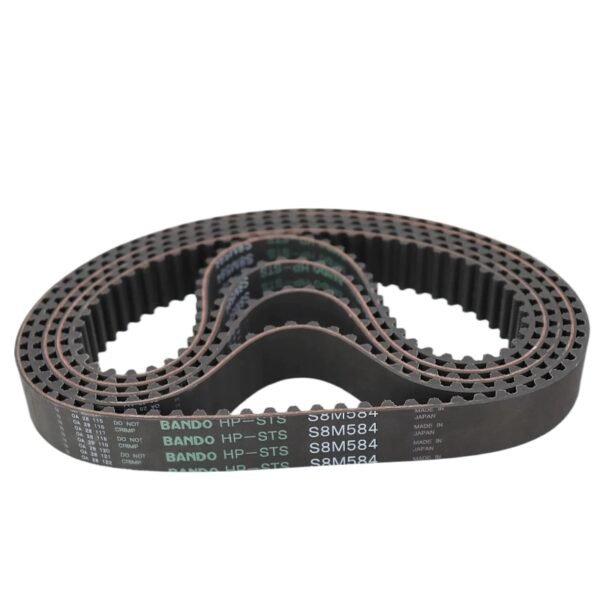

  • BANDO TIMING BELT
    RUBBER TIMING BELT

    BANDO TIMING BELT
    Parameter Technical Specification
    Brand BANDO (Japan)
    Series / Tooth Profile STS (S2M, S3M, S5M, S8M, S14M), HP-STS, CEPTOR-X, MXL, XL, L, H, XH
    Base Material High-Grade Synthetic Rubber (HNBR / CR)
    Tensile Member Fiberglass Cord / High-Modulus Aramid Cord
    Facing Fabric Low-Friction Nylon Tooth Canvas
    Standard Pitch 2.0mm, 3.0mm, 5.0mm, 8.0mm, 14.0mm (Metric) / MXL, XL, L, H (Inch)
    Supply Form Endless Ring Belts / Open-End Cut Lengths
    Temperature Range -30°C to +90°C (-22°F to +194°F)

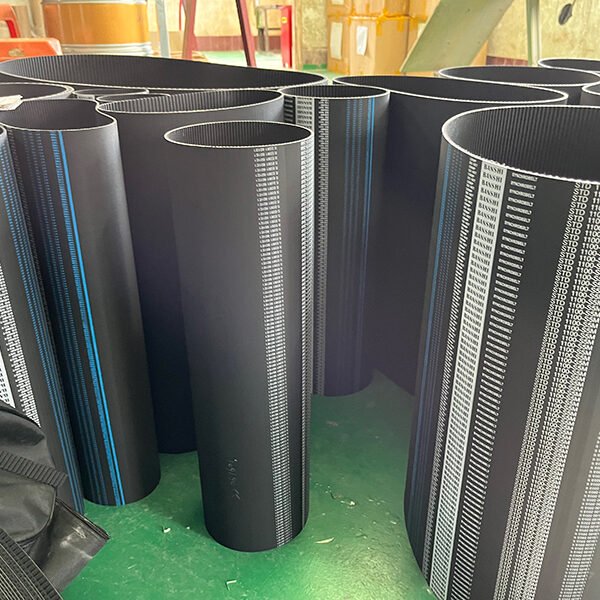

  • BANSHI TIMING BELT
    RUBBER TIMING BELT

    BANSHI TIMING BELT
    Parameter Technical Specification
    Brand / Series BANSHI (Industrial Rubber Synchronous Belt)
    Tooth Profile Series HTD (3M, 5M, 8M, 14M), STS (S2M, S3M, S5M, S8M), Trapezoidal (MXL, XL, L, H, XH)
    Base Material High-Grade Synthetic Rubber (CR / HNBR)
    Tensile Member Continuous Fiberglass Cord / Kevlar (Aramid) Cord
    Facing Fabric Wear-Resistant Nylon Canvas (Tooth Facing)
    Pitch Range 2.0mm to 14.0mm (Metric) / 0.080″ to 0.875″ (Imperial Inch Pitch)
    Supply Form Seamless Endless Ring Belts / Open-End Cut Belts
    Temperature Range -30°C to +90°C (-22°F to +194°F)

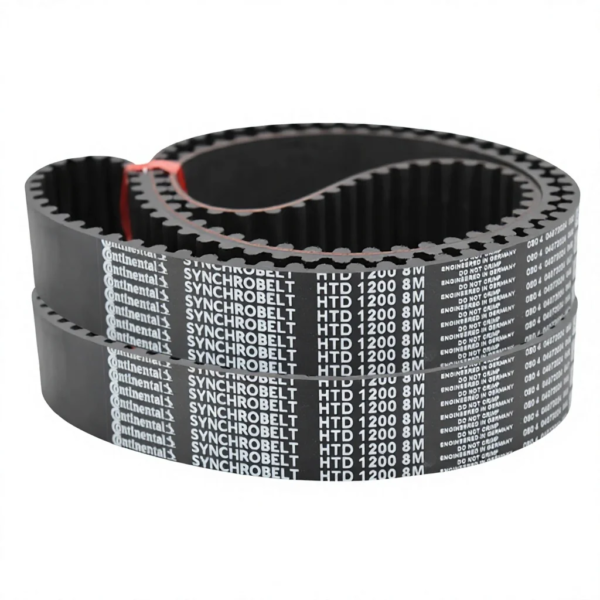

  • CONTINENTAL TIMING BELT
    RUBBER TIMING BELT

    CONTINENTAL TIMING BELT
    Parameter Technical Specification
    Brand CONTINENTAL (Germany)
    Series / Tooth Profile Synchroforce, Conti SilentSync (Helical Offset Tooth), Synchrodrive, HTD, STD, CTD, CXP, CXA
    Base Material Premium Synthetic Rubber (HNBR / CR) / Thermoplastic Polyurethane (TPU)
    Tensile Member Ultra-High Tensile Glass Cord / Carbon Fiber Cord / Steel Cord
    Facing Fabric Wear-Resistant Nylon Fabric with Polyamide Coating
    Standard Pitch 3.0mm, 5.0mm, 8.0mm, 14.0mm (Metric) / MXL, XL, L, H, XH (Imperial)
    Supply Form Seamless Endless Ring Belts / Open-End Cut Lengths
    Temperature Range -30°C to +130°C (-22°F to +266°F, depending on series)

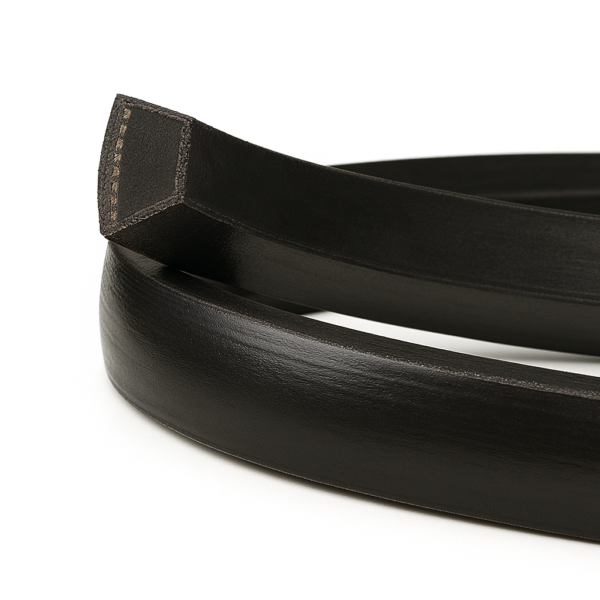

  • Equipment V BELT
    V BELT

    Equipment V BELT
    • Parameter：Technical Specification
    • Product Type：Heavy-Duty Equipment V-Belt/ Industrial Power Transmission Belt
    • Belt Profiles：Classical (A, B, C. D), Metric Wedge (SPA, SPB, SPC. SPZ),Narrow (3V, 5V, 8V). Cogged (AX, BX, XPA, XPB)
    • Construction / Material：High-Grade Synthetic Rubber (EPDM/Neoprene), High-Tensile Polyester / Arid Cord Reinforcement
    • Belt Type：Wrapped V-Belt / Raw Edge Cogged V-Belt / Banded V-Belt
    • Standards Compliance：ISO 4184, DIN 2215, RMA/ MPTA IP-22
    • Static Conductive：ISO 1813 Anti-Static Standard
    • Oil & Heat Resistance：Moderate to High Resistance to Oils, Dust, andEnvironmental Aging
    • Temperature Range：-30°C to +80°C (-22°F to +176°F, EPDM variants up to +120°C)

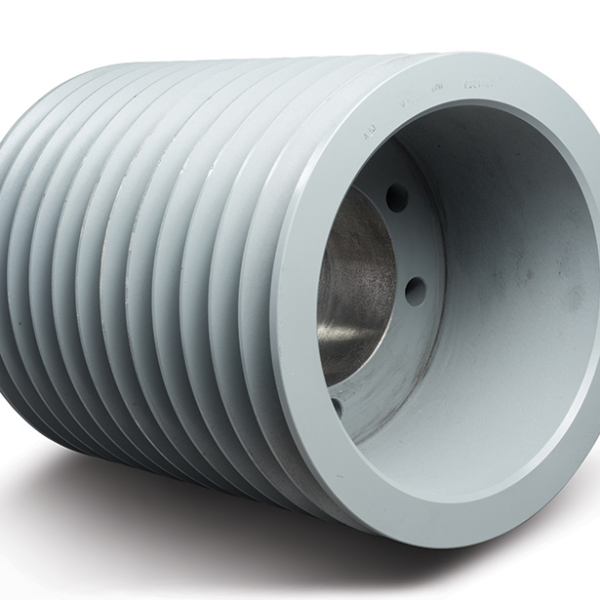

  • Equipment V BELT PULLEY
    V BELT PULLEY

    Equipment V BELT PULLEY
    • Parameter：Technical Specification
    • Product Type：Industrial V-Belt Pulley / Sheave
    • Material Options：Gray Cast Iron (GG25/ HT250), Ductile Iron, S45C CarbonSteel, Aluminum Alloy
    • Applicable Belt Profiles：Metric Wedge (SPA, SPB, SPC. SPZ). Classical (A, B, C. D).Narrow (3V, 5V, 8V)
    • Groove Configuration：1 to 10 Grooves (Custom multi-groove configurationsavailable)
    • Bore Configuration：Taper-Lock Bushing (TB 1008 to 5050), Pilot Bore,Finished Bore with Keyway & Setscrews
    • Surface Treatment：Black Phosphated, Anti-Rust Spray Paint, Anodized(Aluminum), Electroless Nickel Plating
    • Precision & Balancing：ISO 4183 Precision CNC Turned Profile, ISO1940 DynamicBalancing Grade G6.3/G2.5
    • Temperature Range：-30°Cto +120°C(-22°F to+248°F)

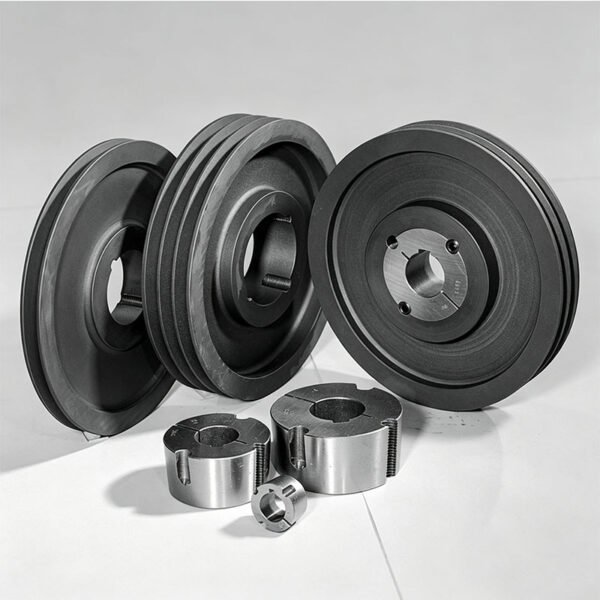

  • Fan V BELT PULLEY
    V BELT PULLEY

    Fan V BELT PULLEY
    • Parameter：Technical Specification
    • Product Type：HVAC & Industrial Fan V-Belt Pulley /Sheave
    • Material Options：High-Grade Gray Cast Iron (GG25/HT250), Ductile Iron,S45C Carbon Steel, Aluminum Alloy
    • Applicable Belt Profiles：Classical V-Belts (A, B, C), Narrow Wedge Belts (SPA, SPB,SPZ, 3V, 5V). Raw Edge Cogged (AX, BX, XPA, XPB)
    • Groove Configuration：1 to 8 Grooves (Single and multi-groove options)
    • Bore Configuration：Taper-Lock Bushing (TB 1008 to 3535), Pilot Bore, FinishedBore with Keyway & Setscrews
    • Surface Treatment：Black Phosphated, Anti-Rust Spray Paint, Anodized(Aluminum), Electroless Nickel Plating
    • Precision & Balancing：ISO 4183 Precision CNC Machined Profile, ISO 1940Dynamic Balancing Grade G6.3/G2.5
    • Temperature Range：-30°Cto +120°C(-22°F to+248°F)

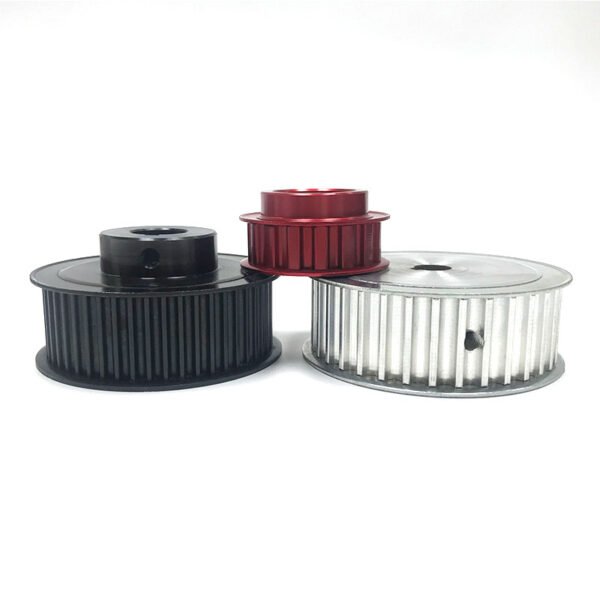

  • GATES GT TIMING PULLEY
    TIMING PULLEY

    GATES GT TIMING PULLEY
    Parameter Technical Specification
    Brand / Compatibility GATES PowerGrip GT Series (GT2, GT3, GT4, Poly Chain GT)
    Tooth Profile Compatibility 2MR, 3MR, 5MR, 8M, 14M (MR / GT Tooth Profiles)
    Material Grade Medium Carbon Steel (S45C/1045), Cast Iron (GG25), High-Grade Aluminum Alloy (6061-T6/7075-T6)
    Bore Configuration Pilot Bore, Finished Bore (H7 with Keyway & Setscrews), Taper-Lock Bushing (TL), QD Bushing
    Surface Treatment Black Oxide, Clear/Hard Anodized, Zinc Plated, Phosphate Coated
    Precision Class Precision CNC Hobbed (ISO 5294 / DIN 7721 Compliant)
    Flange Specification Heavy-Duty Zinc-Plated Steel Flanges (Single or Dual Side)
    Temperature Range -40°C to +250°C (Material Dependent)

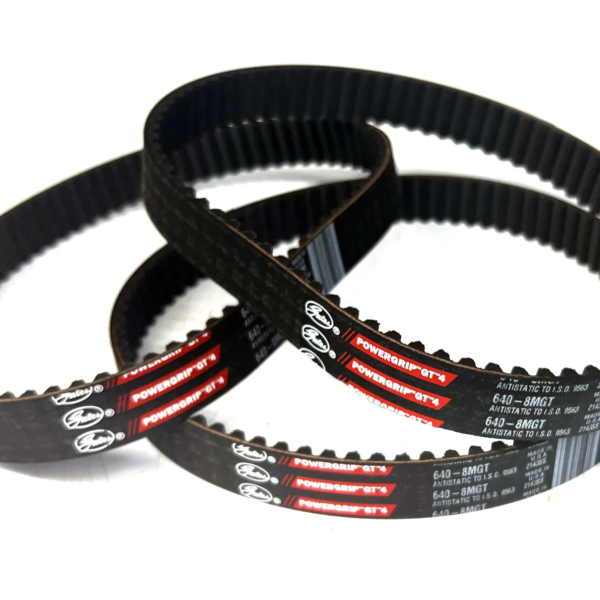

  • GATES TIMING BELT
    RUBBER TIMING BELT

    GATES TIMING BELT
    Parameter Technical Specification
    Brand GATES (USA)
    Series / Tooth Profile PowerGrip GT3/GT4 (2M, 3M, 5M, 8M, 14M), Poly Chain GT Carbon, Tri-Power, HTD, XL, L, H, XH
    Base Material Premium Elastomeric Compound (EPR / HNBR) / Polyurethane (Poly Chain)
    Tensile Member Carbon Fiber Tensile Cord / High-Modulus Fiberglass Cord / Steel Cord
    Facing Fabric Patented Low-Friction Tooth Nylon Facing (Nylon Fabric)
    Standard Pitch 2.0mm, 3.0mm, 5.0mm, 8.0mm, 14.0mm (Metric) / MXL, XL, L, H (Imperial)
    Supply Form Seamless Endless Belts / Long-Length Open Belts
    Temperature Range -30°C to +120°C (-22°F to +248°F, up to +140°C for GT4 series)

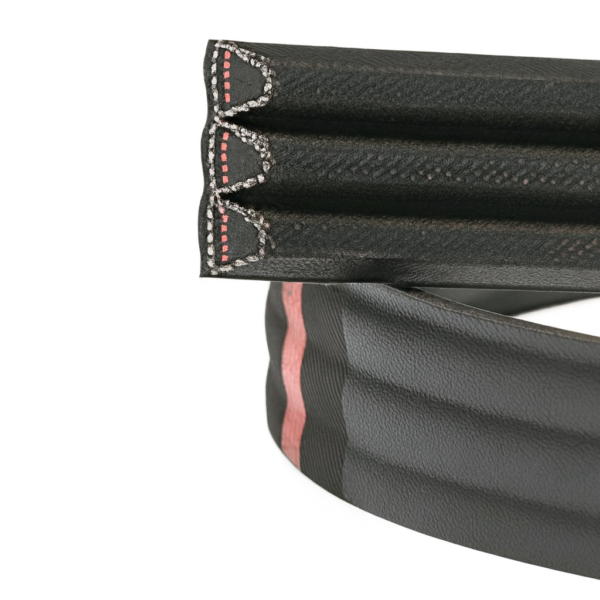

  • Heavy Equipment V-Belts
    V BELT

    Heavy Equipment V-Belts
    • Parameter：Technical Specification
    • Product Type：Heavy Equipment V-Belt / High-Torque IndustrialTransmission Belt
    • Belt Profiles：Heavy Narrow (3V/3VX, 5V/5VX, 8V). Metric Wedge(SPA/XPA, SPB/XPB, SPC/XPC), Classical (B, C. D).Banded (2/3/4/5-rib groups)
    • Construction / Material：Premium EPDM/ Heavy Synthetic Rubber Compound,Aramid (Kevlar) / High-Modulus Polyester CordReinforcement
    • Belt Structure：Heavy-Duty Wrapped/ Molded Cogged Raw Edge/Reinforced Banded Construction
    • Standards Compliance：ISO 4184, DIN 7753, RMA/ MPTA IP-22, SAE J636
    • Static Conductive：ISO 1813 Anti-Static Compliant
    • Efficiency Grade：High Resistance to Heavy Oils, Weathering. Ozone,Abrasive Dust, and Extreme Shock Loads
    • Temperature Range：-40°C to +120°C (-40°F to +248°F)
