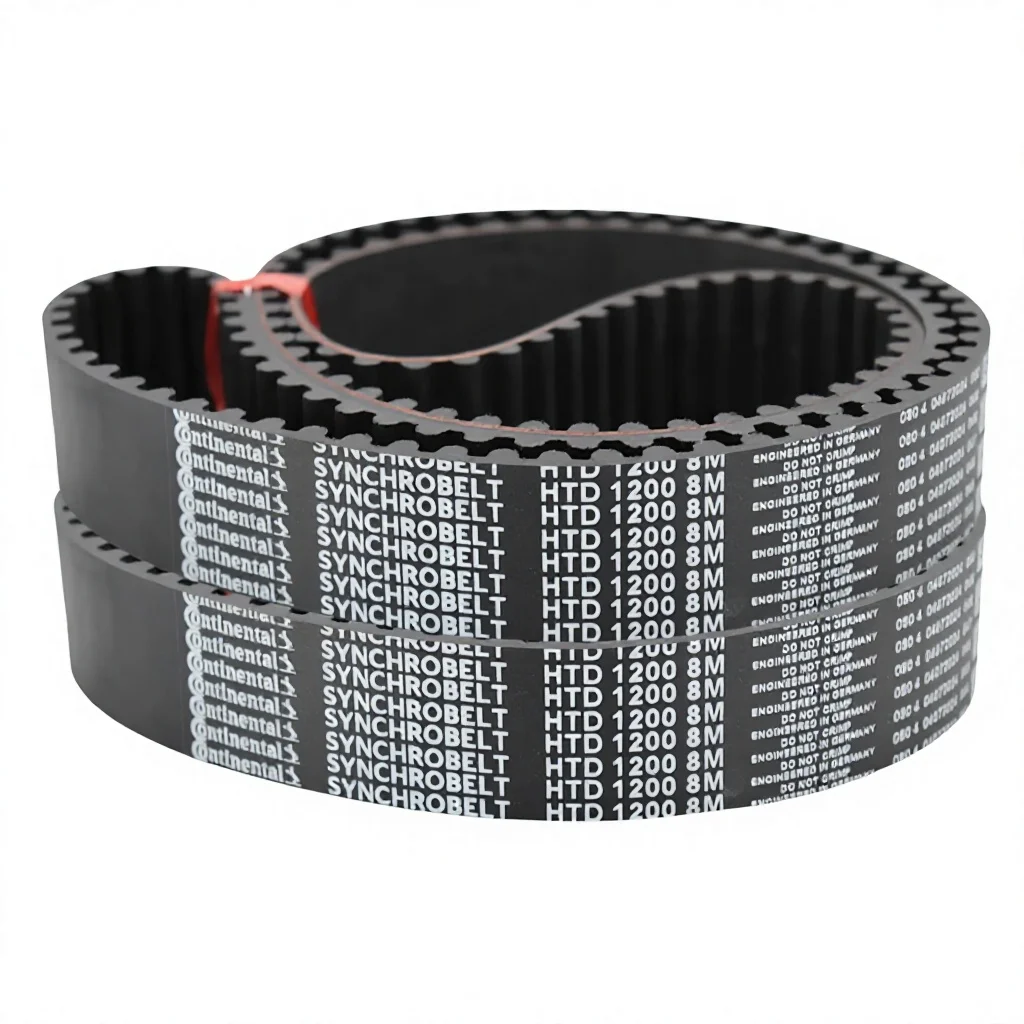

CONTINENTAL TIMING BELT
| Parameter | Technical Specification |
|---|---|
| Brand | CONTINENTAL (Germany) |
| Series / Tooth Profile | Synchroforce, Conti SilentSync (Helical Offset Tooth), Synchrodrive, HTD, STD, CTD, CXP, CXA |
| Base Material | Premium Synthetic Rubber (HNBR / CR) / Thermoplastic Polyurethane (TPU) |
| Tensile Member | Ultra-High Tensile Glass Cord / Carbon Fiber Cord / Steel Cord |
| Facing Fabric | Wear-Resistant Nylon Fabric with Polyamide Coating |
| Standard Pitch | 3.0mm, 5.0mm, 8.0mm, 14.0mm (Metric) / MXL, XL, L, H, XH (Imperial) |
| Supply Form | Seamless Endless Ring Belts / Open-End Cut Lengths |
| Temperature Range | -30°C to +130°C (-22°F to +266°F, depending on series) |
Description
Product Description
CONTINENTAL timing belts represent high-end German engineering for synchronous power transmission and linear drive technology. Utilizing advanced compounding, high-modulus cord reinforcements, and innovative tooth geometry (such as the quiet-running SilentSync helical offset tooth technology), CONTINENTAL belts deliver maximum power transfer, extremely low noise, and minimal maintenance requirements across demanding industrial environments.
Applications
Heavy-Duty Industrial Drives: Compressors, blowers, heavy machinery, and high-torque industrial power transmission.
Precision Linear Positioning: High-speed gantry systems, automated transfer lines, and CNC machining centers.
Low-Noise & High-Speed Systems: Food packaging, bottling plants, and noise-sensitive indoor manufacturing lines.
Key Features
Ultra-Low Noise (SilentSync): Continuous rolling tooth contact minimizes vibration and reduces noise levels by up to 19 dB compared to standard HTD belts.
Extreme Torque Transmission: High-performance CXP/CXA and carbon cord series deliver massive load capacity in compact drive footprints.
Self-Tracking Design: Helical offset tooth profiles eliminate the need for pulley flanges, reducing system weight and side-thrust wear.
High Chemical & Temperature Resistance: Premium HNBR rubber compound offers exceptional resistance to heat aging, ozone, and oil exposure.
