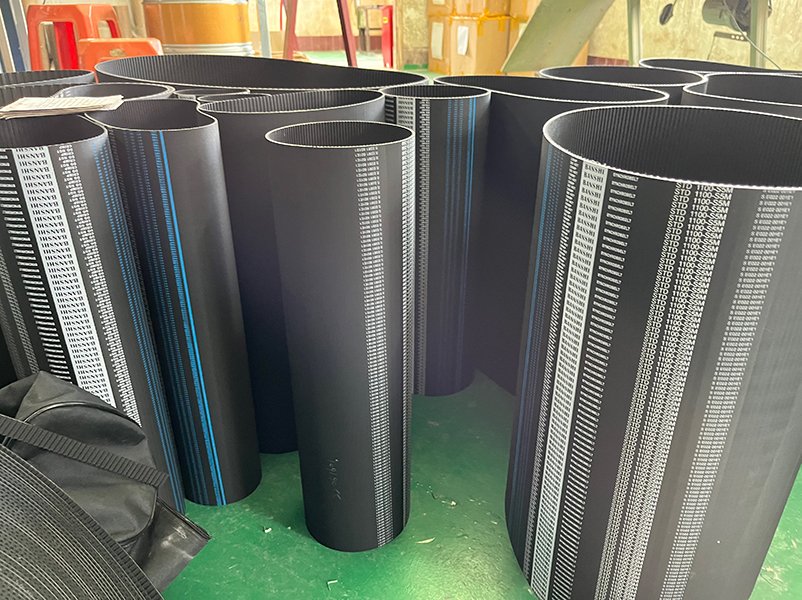

BANSHI TIMING BELT
| Parameter | Technical Specification |
|---|---|
| Brand / Series | BANSHI (Industrial Rubber Synchronous Belt) |
| Tooth Profile Series | HTD (3M, 5M, 8M, 14M), STS (S2M, S3M, S5M, S8M), Trapezoidal (MXL, XL, L, H, XH) |
| Base Material | High-Grade Synthetic Rubber (CR / HNBR) |
| Tensile Member | Continuous Fiberglass Cord / Kevlar (Aramid) Cord |
| Facing Fabric | Wear-Resistant Nylon Canvas (Tooth Facing) |
| Pitch Range | 2.0mm to 14.0mm (Metric) / 0.080″ to 0.875″ (Imperial Inch Pitch) |
| Supply Form | Seamless Endless Ring Belts / Open-End Cut Belts |
| Temperature Range | -30°C to +90°C (-22°F to +194°F) |
Description
Product Description
BANSHI Rubber Timing Belts are cost-effective synchronous drive belts engineered for general power transmission and high-torque machinery. Constructed with high-durability synthetic rubber compounds, high-tensile fiberglass cords, and a low-friction nylon tooth facing, BANSHI belts deliver smooth meshing, minimal slip, high power capacity, and reliable pitch stability across industrial and commercial equipment.
Applications
Industrial Equipment & Drives: General power transmission, machine tools, woodworking machines, and textile equipment.
Automation & Personal Mobility: Electric skateboards, automated packaging machinery, small CNC modules, and linear actuators.
Office & Household Appliances: Commercial printers, copiers, fitness equipment, and home appliance drives.
Key Features
High-Torque Transmission: Curvilinear (HTD/STS) tooth profiles distribute stress evenly across the tooth root to handle peak torque loads.
Low Elongation: High-modulus fiberglass tension cords prevent dynamic stretching and ensure consistent timing precision.
Quiet & Smooth Operation: Low-friction nylon tooth canvas reduces meshing noise and mitigates friction-induced wear.
Oil & Environmental Resistance: Specially formulated rubber compound protects against heat aging, ambient oil exposure, and abrasion.
