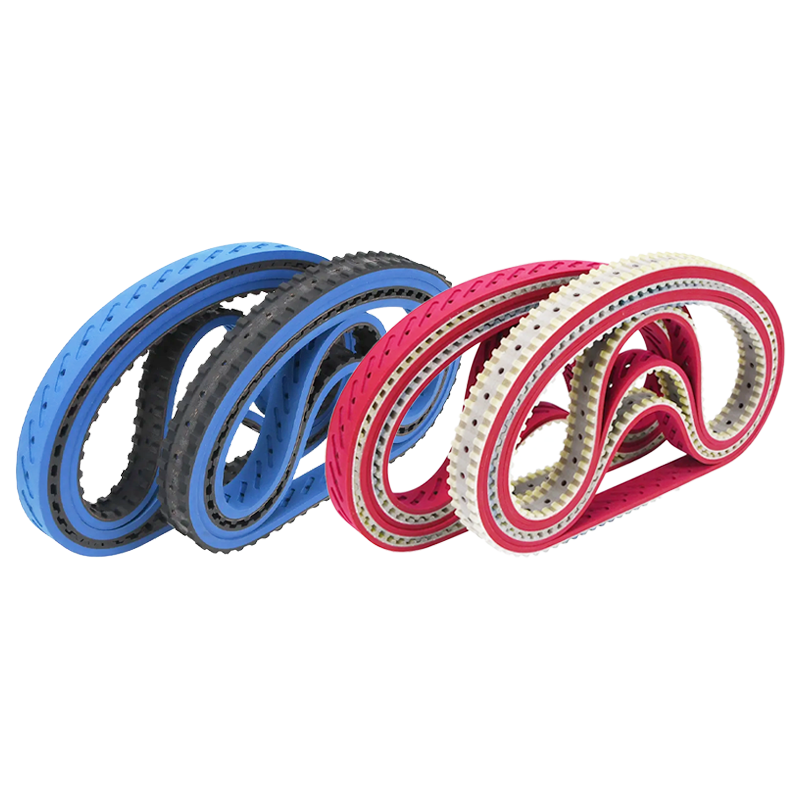

RUBBER COATED BELT
| Parameter | Technical Specification |
|---|---|
| Product Type | Rubber Coated Conveyor & Timing Belt |
| Base Belt Material | Synthetic Rubber (CR / HNBR) / Thermoplastic Polyurethane (TPU) |
| Coating Materials | Natural Rubber (Linatex), Red Rubber, EPDM, Sponge, Rubber Fabricated |
| Coating Hardness | 35° Shore A (Soft Linatex) to 70° Shore A (Standard Red Rubber) |
| Coating Thickness | 1.0mm to 5.0mm (Custom thickness available) |
| Tensile Cord Member | High-Tensile Glass Cord / Steel Cord / Kevlar (Aramid) Cord |
| Base Belt Profiles | HTD 5M, 8M, 14M, STD 5M, 8M, T5, T10, AT10, XL, L, H |
| Secondary Processing | Transverse/Longitudinal Grooving, Vacuum Perforation, CNC Milling |
| Temperature Range | -20°C to +80°C (-4°F to +176°F) |
Description
Product Description
Rubber Coated Timing Belts are specialized synchronous power transmission and material conveying components engineered with a high-friction elastomeric layer vulcanized or bonded directly onto the belt backing. Designed for demanding pulling, feeding, and positioning applications, these belts merge the precise, non-stretch drive characteristics of a timing belt core with a durable, high-grip rubber surface layer.
Applications
Packaging & Paper Handling: Box haul-off drives, folder gluers, card feeders, and carton sealing machinery.
Cable & Pipe Manufacturing: Cable puller tractors, plastic pipe haul-off machinery, and wire drawing units.
Woodworking & Building Materials: Timber feeding lines, glass sheet transfer systems, and ceramic tile processing.
Key Features
Superior Surface Grip: High-coefficient rubber coatings eliminate slippage when pulling smooth, heavy, or slick materials.
High Vulcanization Bond: Advanced chemical vulcanization prevents layer separation or delamination under high shear forces and continuous bending.
Vibration Dampening & Impact Absorption: Soft rubber layers absorb mechanical impact and protect fragile products from surface damage during conveyance.
Custom Processing: Supports longitudinal grooving for cable guide channels, cross-milling, and precision-drilled vacuum suction holes.
