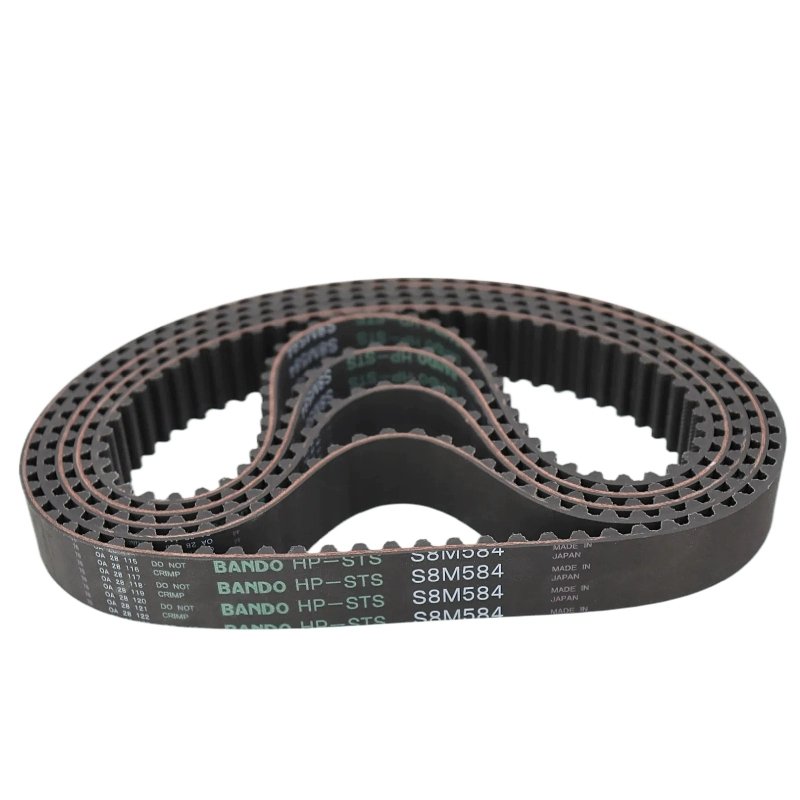

BANDO TIMING BELT
| Parameter | Technical Specification |
|---|---|
| Brand | BANDO (Japan) |
| Series / Tooth Profile | STS (S2M, S3M, S5M, S8M, S14M), HP-STS, CEPTOR-X, MXL, XL, L, H, XH |
| Base Material | High-Grade Synthetic Rubber (HNBR / CR) |
| Tensile Member | Fiberglass Cord / High-Modulus Aramid Cord |
| Facing Fabric | Low-Friction Nylon Tooth Canvas |
| Standard Pitch | 2.0mm, 3.0mm, 5.0mm, 8.0mm, 14.0mm (Metric) / MXL, XL, L, H (Inch) |
| Supply Form | Endless Ring Belts / Open-End Cut Lengths |
| Temperature Range | -30°C to +90°C (-22°F to +194°F) |
Description
Product Description
BANDO timing belts are engineered for high-precision power transmission and sync accuracy. Utilizing smooth meshing Tooth Profile technology (such as the STS – Smooth Tooth Engagement system), BANDO belts provide high torque transmission with low noise, minimal polygon effect, and exceptional fatigue resistance across automotive, industrial, and automation applications.
Applications
Industrial Automation & Robotics: Precision positioning drives, linear actuators, and CNC servo systems.
Automotive Engine Systems: Camshaft timing drives and engine accessory systems (OEM grade).
Office & Printing Equipment: High-speed copiers, 3D printers, and automated paper handling systems.
Key Features
Smooth Engagement: STS curvilinear tooth profile reduces meshing noise and strain concentration at the tooth root.
High Torque Capacity: Premium series like HP-STS and CEPTOR-X deliver superior load capability in compact drive layouts.
Low Stretch & Long Life: High-tensile glass cord reinforcement maintains pitch stability over long duty cycles.
Oil & Heat Resistance: Specially compounded rubber resists ambient oil exposure, heat aging, and tooth wear.
