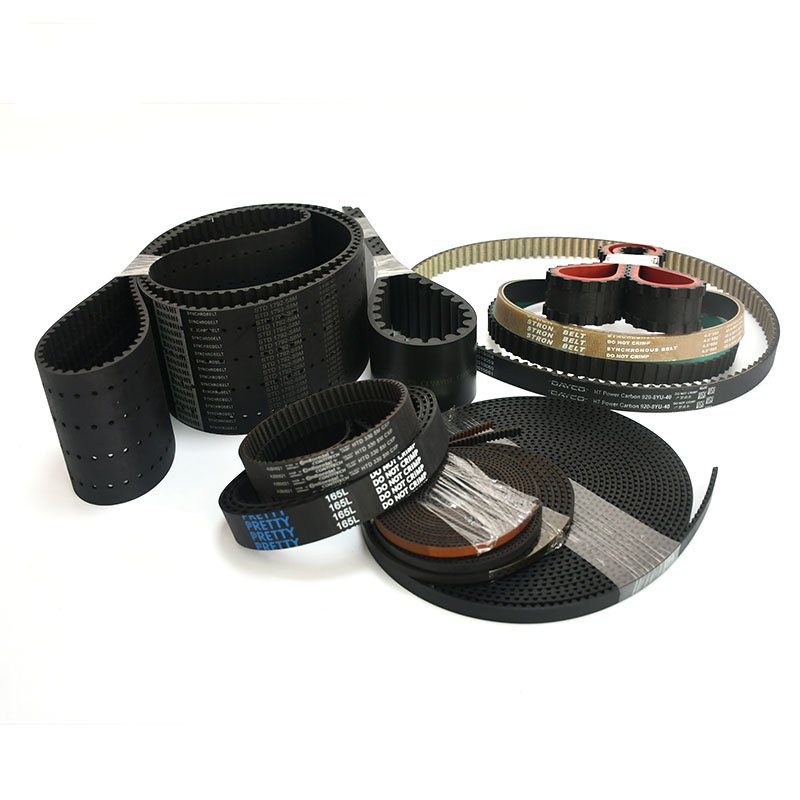

RUBBER TIMING BELT
| Parameter | Technical Specification |
|---|---|
| Product Type | Industrial Rubber Synchronous Timing Belt |
| Tooth Profile Series | HTD (2M, 3M, 5M, 8M, 14M), STD (S2M, S3M, S5M, S8M, S14M), Trapezoidal (MXL, XL, L, H, XH, XXH) |
| Base Material | High-Grade Synthetic Rubber (Neoprene / CR / HNBR) |
| Tensile Cord Member | Continuous High-Modulus Fiberglass Cord / Kevlar Cord |
| Facing Fabric | High Wear-Resistant Polyamide (Nylon) Tooth Canvas |
| Pitch Range | 2.0mm to 14.0mm (Metric) / 0.080″ to 1.250″ (Imperial Pitch) |
| Supply Form | Continuous Endless Ring Belts / Open-End Cut Lengths |
| Standard Widths | 6mm to 100mm (Custom slitting available) |
| Temperature Range | -30°C to +100°C (-22°F to +212°F) |
Description
Product Description
Rubber Timing Belts are reliable synchronous power transmission components engineered with a rubber compounding matrix, continuous high-tensile fiberglass tension members, and a protective nylon tooth canvas. Designed for high rotational speeds, quiet meshing, and high-torque transfers, rubber timing belts offer excellent flex fatigue resistance and pitch stability without requiring lubrication or frequent retensioning.
Applications
General Industrial Machinery: Machine tools, textile equipment, pumps, compressors, and printing presses.
Automotive & Small Engines: Engine camshaft timing drives, oil pumps, and auxiliary equipment drives.
HVAC & Commercial Drives: Air handler ventilation fans, commercial laundry equipment, and fitness machinery.
Key Features
Quiet & Vibration-Dampening: Elastomeric body dampens operational vibration and reduces meshing noise at high drive speeds.
Low Elongation: Premium fiberglass cords provide high tensile strength and minimal dynamic stretch over extended duty cycles.
Zero Maintenance: Requires no lubrication or oil baths, eliminating grease contamination and reducing overall system downtime.
Heat & Oil Resistance: Formulated to withstand ambient oil mist, ozone exposure, heat aging, and tooth root shear stresses.
