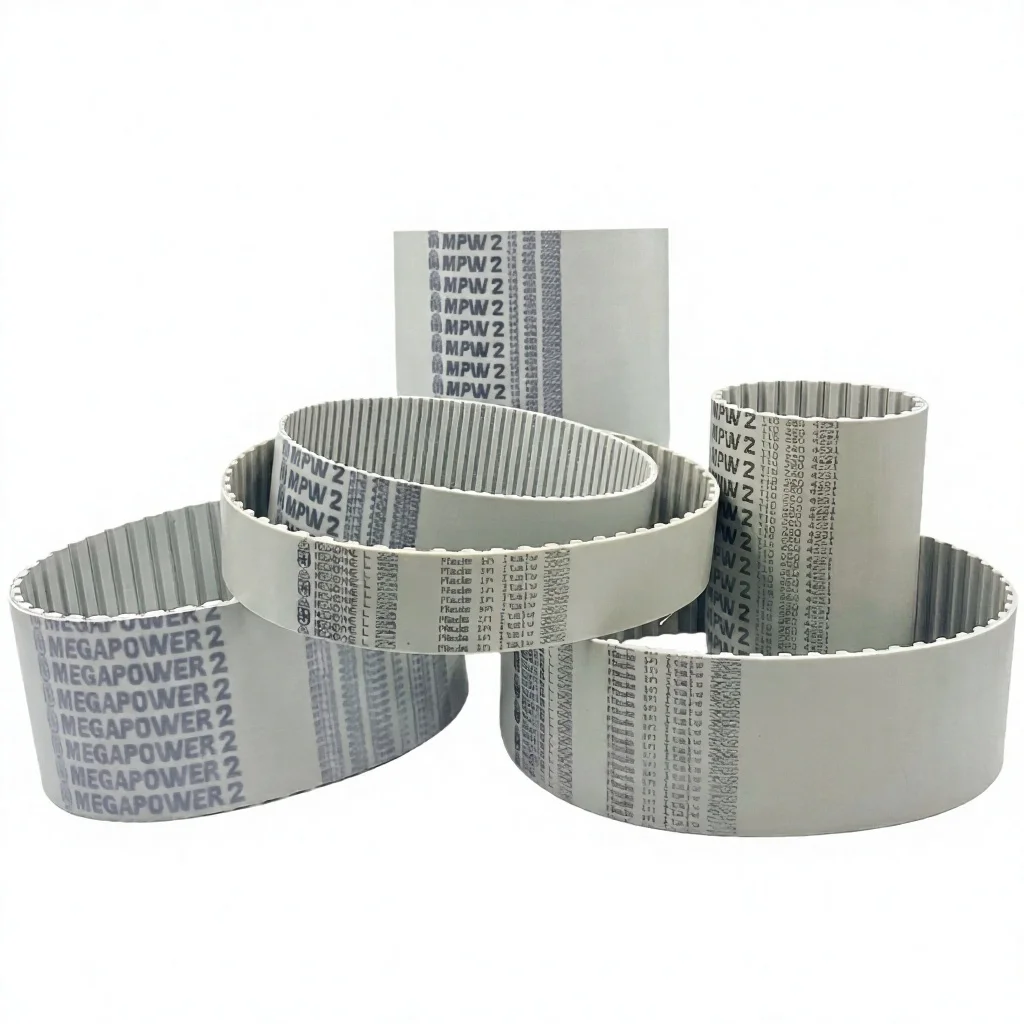

MEGADYNE TIMING BELT
| Parameter | Technical Specification |
|---|---|
| Brand | MEGADYNE (Italy) |
| Series / Tooth Profile | MEGAPOWER, MEGAFLEX, ISORAN, PLATINUM, GOLD, RPP3, RPP5, RPP8, RPP14, T5, T10, AT5, AT10 |
| Base Material | Thermoplastic Polyurethane (TPU) / High-Grade Synthetic Rubber (HNBR / CR) |
| Tensile Member | High-Tensile Steel Cord / Kevlar Cord / Fiberglass Cord |
| Facing Fabric | Nylon Fabric (Tooth Side) / NBR (Nylon Fabric Backing) / Special Covers |
| Standard Pitch | 3.0mm, 5.0mm, 8.0mm, 14.0mm (RPP/STD) / 2.5mm, 5.0mm, 10.0mm, 20.0mm (T/TAT Series) |
| Supply Form | Truly Seamless Endless / Open-End Cut Lengths / Spliced Jointed Belts |
| Temperature Range | -25°C to +80°C (Polyurethane) / -30°C to +115°C (Rubber, ISORAN/PLATINUM) |
Description
Product Description
MEGADYNE timing belts are premium power transmission components designed for high-torque drives, linear positioning, and industrial conveying applications. Featuring advanced polyurethane and rubber technology, MEGADYNE belts offer superior pitch accuracy, minimal stretch, and exceptional resistance to wear, oils, and chemical exposure across automated industrial machinery.
Applications
Industrial Automation & Linear Motion: High-speed gantry systems, linear actuators, and CNC equipment.
Packaging & Material Handling: Conveyor systems, labeling equipment, and high-duty sorting lines.
Heavy-Duty Industrial Drives: Paper processing, textile machinery, and high-torque power transmission systems.
Key Features
High Torque Transmission: Specialized rubber series like PLATINUM and GOLD provide extreme load-bearing capabilities in compact drive designs.
Precise Linear Positioning: Polyurethane MEGAPOWER and MEGAFLEX series deliver low backlash and ultra-low stretch for exact motion control.
Chemical & Wear Resistance: TPU construction ensures excellent oil, ozone, and abrasion resistance with zero dust generation.
Custom Backing & Fabric Options: Available with nylon tooth/back facing and custom backing materials (Linatex, Tenax, PU covers) for tailored conveying needs.
