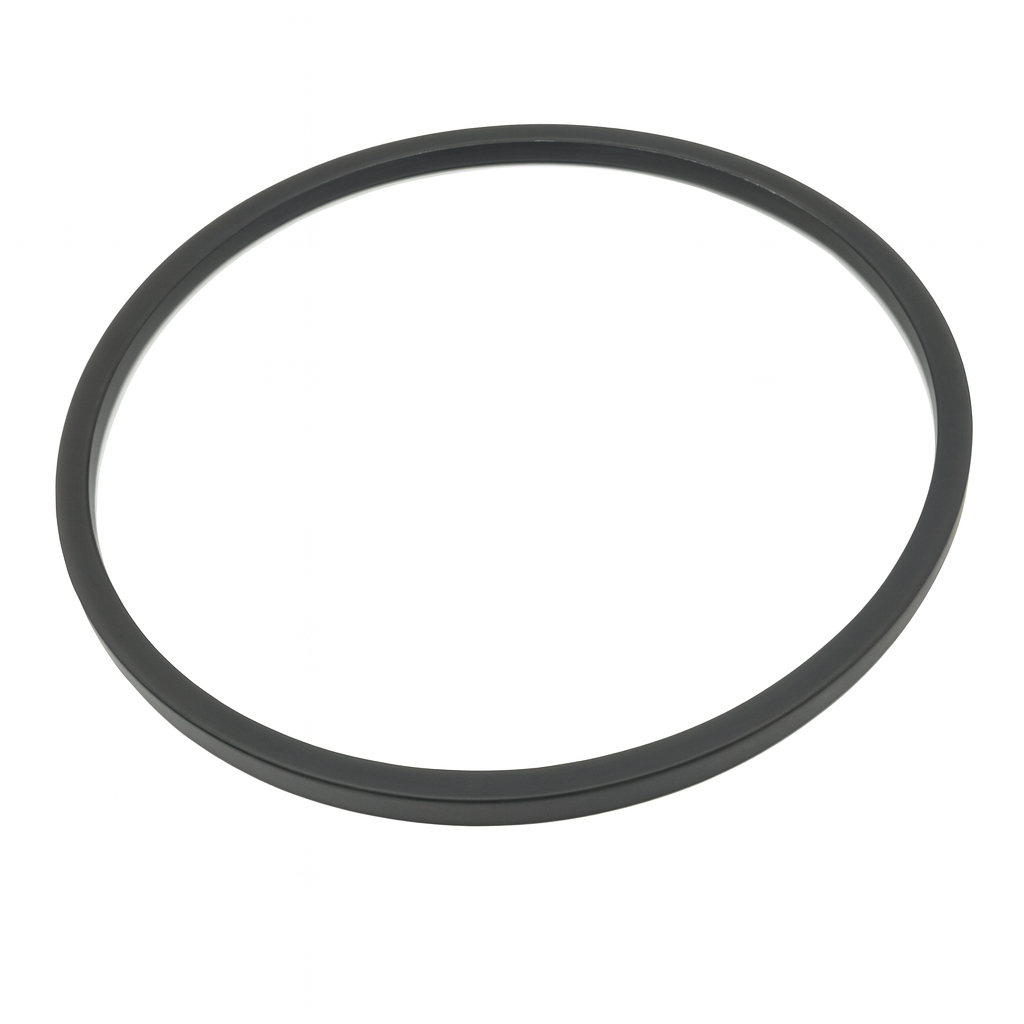

High power V BELT

High power V BELT

  • Parameter：Technical Specification
  • Product Type：High-Power Transmission V-Belt/ High-Torque Industrial Belt
  • Belt Profiles：High-Power Narrow Wedge (3V/3VX,5V/5VX, 8V), MetricNarrow (XPA, XPB, XPC, SPZ), Banded High-Power
  • Construction / Material：Advanced EPDM Synthetic Rubber, High-Modulus Aramid(Kevlar)/ Tensile Polyester Cord
  • Belt Structure：Raw Edge Molded Cogged / High-Flex Banded / Heavy-Duty Wrapped Construction
  • Standards Compliance：ISO 4184, DIN 7753, RMA/ MPTA IP-22, BS 3790
  • Static Conductive：ISO 1813 Anti-Static Compliant
  • Efficiency Grade：Premium Energy-Efficient Drive (up to 97% powertransmission efficiency)
  • Temperature Range：-40°Cto +120°C(-40°F to +248°F)

Description

High power V BELT are ultra-high performance transmission belts engineered to deliver maximum power capacity and torque transfer within compact drive spaces. Utilizing high-modulus Aramid (Kevlar) cords and heat-resistant EPDM rubber compounds. these belts provide up to 200% higher horsepower ratings compared to standard classical V-belts. Designed to handle extreme dynamic tension, elevated temperatures.high peripheral speeds.High Power V-Belts are the ideal solution for high-load industrial drives requiring maximum drive efficiency and reduced drive footprint.

Applications

High-Torque Machinery: Heavy-duty stone crushers, wood chippers, plastic granulators, and shredders.

Compact Industrial Drives: High-output electric motor drives, compact machine tool transmissions, and high-speed centrifuges.

Severe Continuous Duty: Power plant cooling towers, large commercial air compressors, mud pumps, and mining equipment.

Key Features

Maximum Power Density: Delivers higher horsepower capacity in fewer belt strands, enabling smaller pulley diameters and more compact drive design.

Aramid Tension Cords: Minimal stretch and high dynamic tension tolerance eliminate frequent re-tensioning and prevent sudden drive failure.

Raw Edge Cogged Design: Molded cogs increase belt flexibility around smaller pulleys, reducing bending fatigue and heat buildup during high-speed rotation.

Thermal & Environmental Resistance: Premium EPDM formulation resists thermal degradation, oil contamination, ozone aging, and harsh ambient conditions.

Related Products

Related products

  • V BELT
    V BELT

    V BELT
    • Parameter:Technical Specification
    • Product Type:Standard & Heavy-Duty Industrial V-Belt
    • Belt Profiles:Classical (M, A, B, C, D. E), Metric Wedge (SPZ, SPA,SPB, SPC), Heavy Narrow (3V/9N,5V/15N, 8V/25N), RawEdge Cogged (AX, BX, CX, XPA, XPB, XPC. 3VX, 5VX)
    • Construction / Material:High-Grade Synthetic Rubber (EPDM/ Neoprene).High-Tensile Polyester / Aramid (Kevlar) Tension Cord
    • Belt Structure:Fabric Wrapped (Protective Cover)/ Molded Raw EdgeCogged/ Banded Multi-Ribbed
    • Standards Compliance:ISO 4184, DIN 2215. DIN 7753, RMA/ MPTA IP-22, BS3790
    • Static Conductive:ISO 1813 Anti-Static Compliant
    • Environmental Resistance:High Resistance to Heat, Oil, Ozone, Abrasive Dust, andContinuous Flex Fatigue
    • Temperature Range:-30°C to +90°C (-22°F to +194°F, EPDM/Raw EdgeCogged variants up to +120°C)

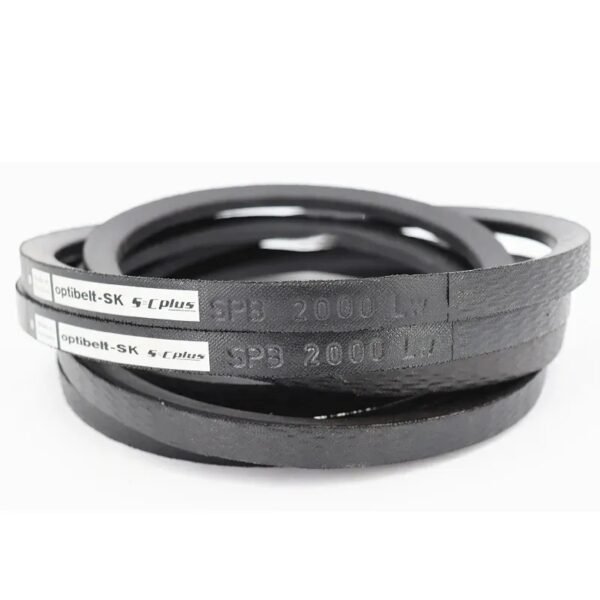

  • OPTIBELT V BELT
