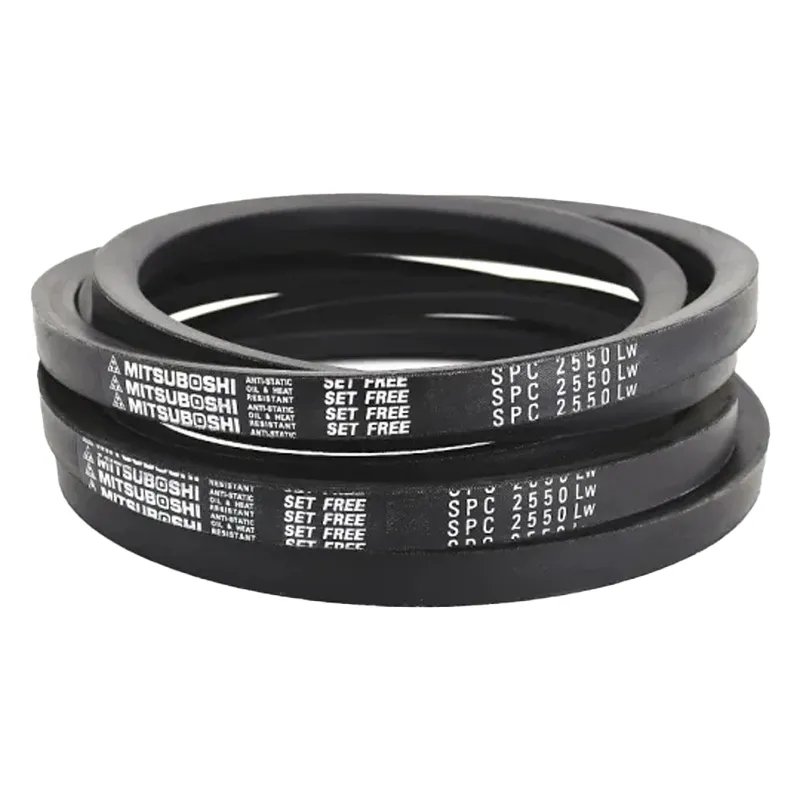

Mitsuboshi V-Belts

Mitsuboshi V-Belts

  • Parameter：Technical Specification
  • Product Type：Premium Industrial Power Transmission V-Belt
  • Brand Origin：Mitsuboshi Belting Ltd. (Japan)
  • Belt Profiles：Classical (M, A, B. C. D. E), Narrow Wedge (3V/3VX,5V/5VX. 8V, MAXSTAR WEDGE). Metric (SPA, SPB. SPC.SPZ), Molded Cogged (RAW EDGE COGGED – AX, BX, CX)
  • Construction / Material：Premium Chloroprene /EPDM Rubber, High-ModulusPolyester / Aramid Cord Reinforcement
  • Core Product Series：Mitsuboshi Standard/ Red Label (Heavy Duty). MAXSTARWEDGE, RAW EDGE COGGED. SUPER KB, GIGA TORQUE
  • Standards Compliance：JIS K 6323, ISO 4184, DIN 2215, RMA/ MPTA IP-22
  • Static Conductive：Meets ISO 1813/ RMA Static Conductivity Standards
  • Temperature Range：-30°C to +90°C (-22°F to +194°F, EPDM/ Raw Edge variants up to +120°C)

Description

Mitsuboshi V-Belts are Japanese-engineered power transmission belts designed for high precision, durability, and operational efficiency across industrial applications. Manufactured using high-grade Chloroprene and EPDM rubber compounds with low-stretch cord tensioners, Mitsuboshi V-Belts deliver exceptional length stability (Set Free / MATCHED SET) for multi-belt drives. From light-duty agricultural applications to high-torque industrial machinery, Mitsuboshi V-Belts offer optimal friction grip, heat resistance, and long operational life.

Applications

Industrial Machinery & Manufacturing: Machine tools, textile machinery, commercial printing presses, and conveyor systems.

HVAC & Building Systems: Air conditioning blowers, exhaust fans, commercial ventilation units, and water pumps.

Heavy Duty & Agricultural Equipment: Agricultural harvesters, rock crushers, air compressors, and heavy material handling drives.

Key Features

SET-FREE Precision: Minimal length tolerance guarantees equal load distribution across all strands on multi-groove pulley drives, preventing uneven belt wear.

High Heat & Oil Resistance: Formulated with specialized Chloroprene and EPDM rubber compounds that resist thermal degradation, oil splash, and environmental exposure.

Low Stretch & High Stability: Pre-stretched polyester and Aramid cords ensure minimal elongation, drastically reducing the need for continuous belt re-tensioning.

Raw Edge Cogged Flexibility: Raw Edge Cogged series features molded bottom cogs for superior bending flexibility around smaller pulley diameters, minimizing bending stress and heat generation.

Related Products

Related products

  • High power V BELT
    V BELT

    High power V BELT
    • Parameter：Technical Specification
    • Product Type：High-Power Transmission V-Belt/ High-Torque Industrial Belt
    • Belt Profiles：High-Power Narrow Wedge (3V/3VX,5V/5VX, 8V), MetricNarrow (XPA, XPB, XPC, SPZ), Banded High-Power
    • Construction / Material：Advanced EPDM Synthetic Rubber, High-Modulus Aramid(Kevlar)/ Tensile Polyester Cord
    • Belt Structure：Raw Edge Molded Cogged / High-Flex Banded / Heavy-Duty Wrapped Construction
    • Standards Compliance：ISO 4184, DIN 7753, RMA/ MPTA IP-22, BS 3790
    • Static Conductive：ISO 1813 Anti-Static Compliant
    • Efficiency Grade：Premium Energy-Efficient Drive (up to 97% powertransmission efficiency)
    • Temperature Range：-40°Cto +120°C(-40°F to +248°F)
  • Heavy Equipment V-Belts
    V BELT

    Heavy Equipment V-Belts
    • Parameter：Technical Specification
    • Product Type：Heavy Equipment V-Belt / High-Torque IndustrialTransmission Belt
    • Belt Profiles：Heavy Narrow (3V/3VX, 5V/5VX, 8V). Metric Wedge(SPA/XPA, SPB/XPB, SPC/XPC), Classical (B, C. D).Banded (2/3/4/5-rib groups)
    • Construction / Material：Premium EPDM/ Heavy Synthetic Rubber Compound,Aramid (Kevlar) / High-Modulus Polyester CordReinforcement
    • Belt Structure：Heavy-Duty Wrapped/ Molded Cogged Raw Edge/Reinforced Banded Construction
    • Standards Compliance：ISO 4184, DIN 7753, RMA/ MPTA IP-22, SAE J636
    • Static Conductive：ISO 1813 Anti-Static Compliant
    • Efficiency Grade：High Resistance to Heavy Oils, Weathering. Ozone,Abrasive Dust, and Extreme Shock Loads
    • Temperature Range：-40°C to +120°C (-40°F to +248°F)

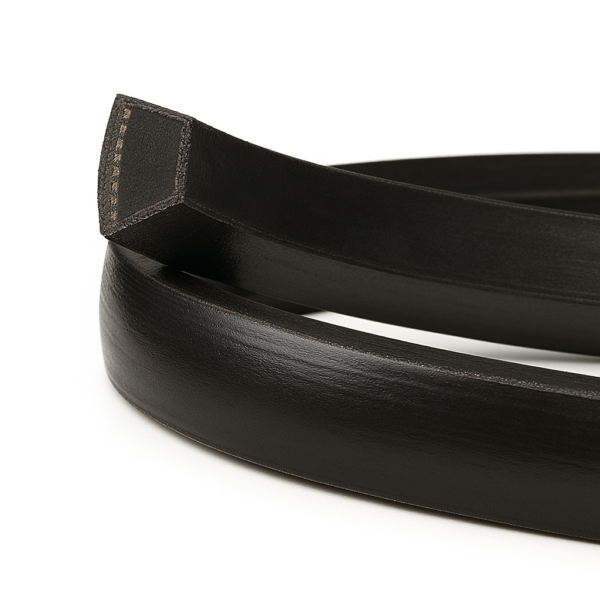

  • Equipment V BELT
