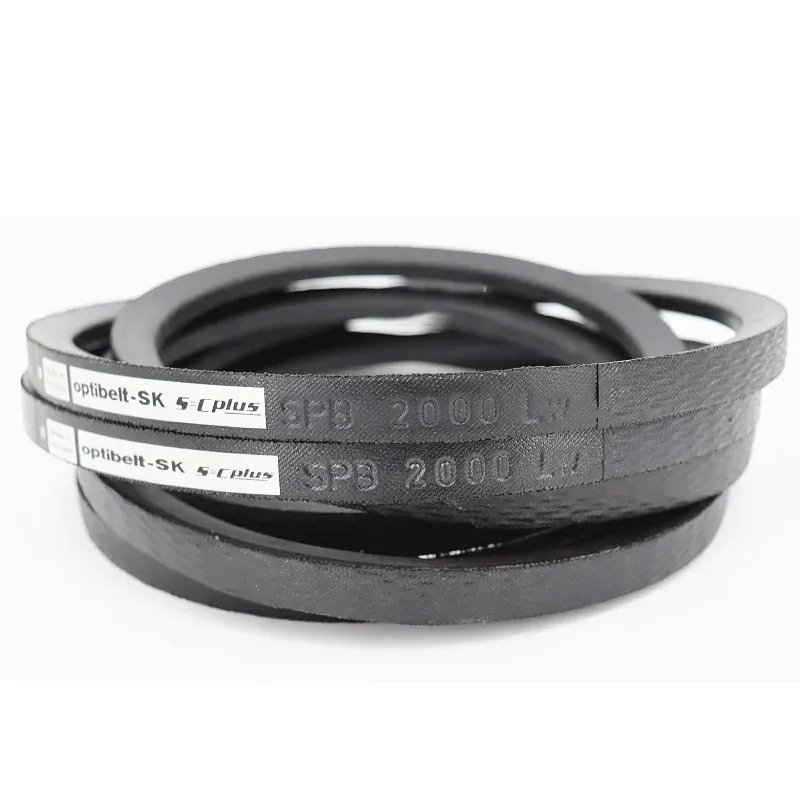

OPTIBELT V BELT

OPTIBELT V BELT

  • Parameter：Technical Specification
  • Product Type：Prermium High-Performance Power Transmission V-Belt
  • Brand Origis：Aentz Optibelt Group (Germany)
  • Belt Profles：Standard Wedge (SPZ, SPA, SPB, SPC) Raw Edge CoggedDPA, XPB, XPC. Super X-POWER. Heewy Namrow [TRN.5M15N, BV25NQ. Clasical (5. 6, 8, Z/10. A/T3, B/T. C/22,D/32.EA40)
  • Construction/ Material：Prermilum EPDM Synthetic Rubber Corpound, High-Modulus Polyester / Aramid Tension Cord
  • Core Product Series：optibeit SK (Wedgel. optibelkt RED POWER 3(Mairtarance-free).optibelt SUPERX-POWER (Raw EidgeCoggedl. optibelt VB IClassical
  • Standards Compliance：DIN 2215.DIN7753.ISO 4184, RMA/MPTA,BS 3790
  • Static Conductive：ISO 1813/Ans-Static Certried
  • Temperature Range：-40°C to+120°C(-40F to+24T, EPOM RED POWER/SUPER.X-POWERwarionTts)

Description

Product Description

Optibelt V-Belts are German-engineered, high-precision power transmission belts designed for exceptional reliability, continuous heavy-duty load handling, and maximum energy efficiency. Constructed with advanced EPDM rubber compounds and high-modulus cord reinforcements, Optibelt products feature the proprietary S=C Plus (Set Constant) manufacturing tolerance, allowing direct multi-belt installation without requiring pre-sorted matching sets. From maintenance-free drives to severe shock-load heavy equipment, Optibelt V-belts deliver high torque transmission with minimal stretch and long service life.

Applications

Heavy Industrial & Mining Equipment: High-power stone crushers, ball mills, heavy shredders, and bulk material conveyors.

HVAC & Commercial Air Handling: High-efficiency AHU ventilation fans, cooling towers, industrial blowers, and chillers.

General Mechanical Engineering: Agricultural combines, pumps, rotary screw air compressors, and high-speed machine tool drives.

Key Features

S=C Plus (Set Constant): Precision manufacturing guarantees extremely tight length tolerances, allowing unmatched multi-groove drive synchronization without manual set sorting.

Maintenance-Free Technology : High-tensile cord construction eliminates tension loss over time, requiring zero re-tensioning throughout its entire operational lifecycle.

Superior Temperature Tolerance: Advanced EPDM formulation resists thermal degradation, cracking, and hardening under extreme heat up to +120°C.

High Efficiency & Compact Drive Design: Delivers up to 97% power transmission efficiency, enabling higher horsepower ratings on smaller pulley diameters to save space and weight.

Related Products

Related products

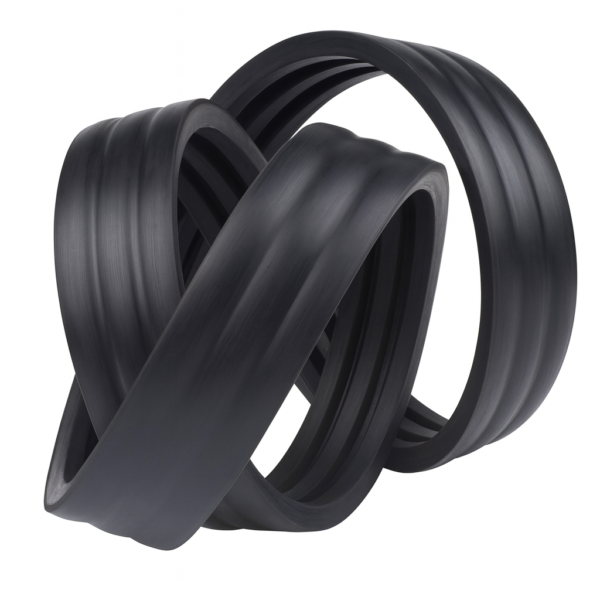

  • V BELT
    V BELT

    V BELT
    • Parameter:Technical Specification
    • Product Type:Standard & Heavy-Duty Industrial V-Belt
    • Belt Profiles:Classical (M, A, B, C, D. E), Metric Wedge (SPZ, SPA,SPB, SPC), Heavy Narrow (3V/9N,5V/15N, 8V/25N), RawEdge Cogged (AX, BX, CX, XPA, XPB, XPC. 3VX, 5VX)
    • Construction / Material:High-Grade Synthetic Rubber (EPDM/ Neoprene).High-Tensile Polyester / Aramid (Kevlar) Tension Cord
    • Belt Structure:Fabric Wrapped (Protective Cover)/ Molded Raw EdgeCogged/ Banded Multi-Ribbed
    • Standards Compliance:ISO 4184, DIN 2215. DIN 7753, RMA/ MPTA IP-22, BS3790
    • Static Conductive:ISO 1813 Anti-Static Compliant
    • Environmental Resistance:High Resistance to Heat, Oil, Ozone, Abrasive Dust, andContinuous Flex Fatigue
    • Temperature Range:-30°C to +90°C (-22°F to +194°F, EPDM/Raw EdgeCogged variants up to +120°C)

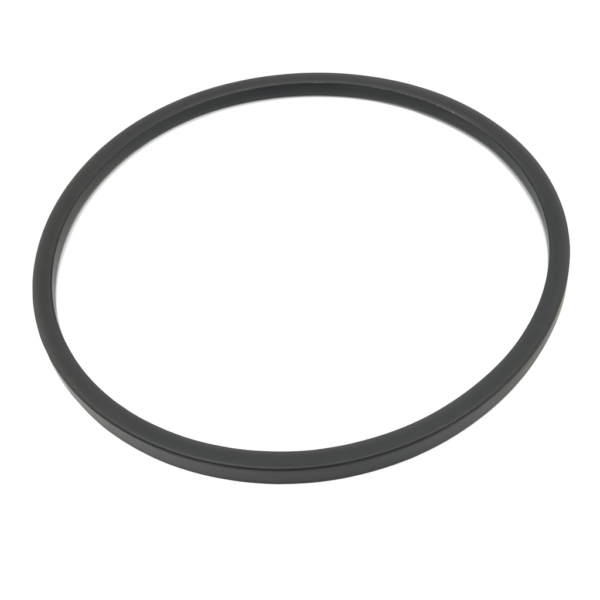

  • High power V BELT
    V BELT

    High power V BELT
    • Parameter：Technical Specification
    • Product Type：High-Power Transmission V-Belt/ High-Torque Industrial Belt
    • Belt Profiles：High-Power Narrow Wedge (3V/3VX,5V/5VX, 8V), MetricNarrow (XPA, XPB, XPC, SPZ), Banded High-Power
    • Construction / Material：Advanced EPDM Synthetic Rubber, High-Modulus Aramid(Kevlar)/ Tensile Polyester Cord
    • Belt Structure：Raw Edge Molded Cogged / High-Flex Banded / Heavy-Duty Wrapped Construction
    • Standards Compliance：ISO 4184, DIN 7753, RMA/ MPTA IP-22, BS 3790
    • Static Conductive：ISO 1813 Anti-Static Compliant
    • Efficiency Grade：Premium Energy-Efficient Drive (up to 97% powertransmission efficiency)
    • Temperature Range：-40°Cto +120°C(-40°F to +248°F)

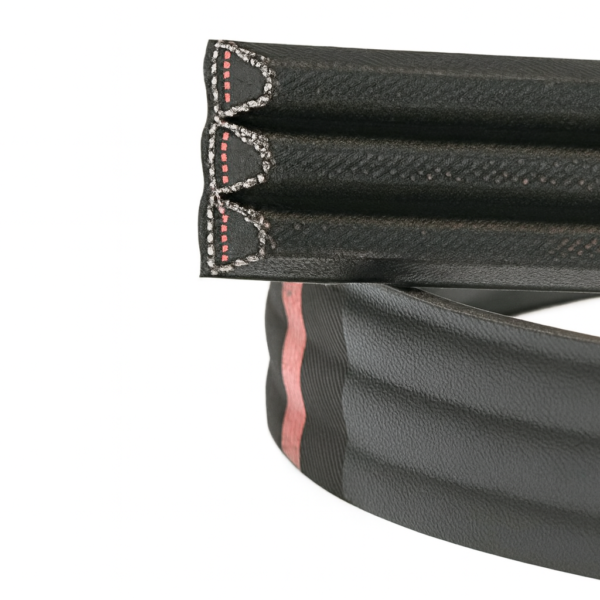

  • Equipment V BELT
